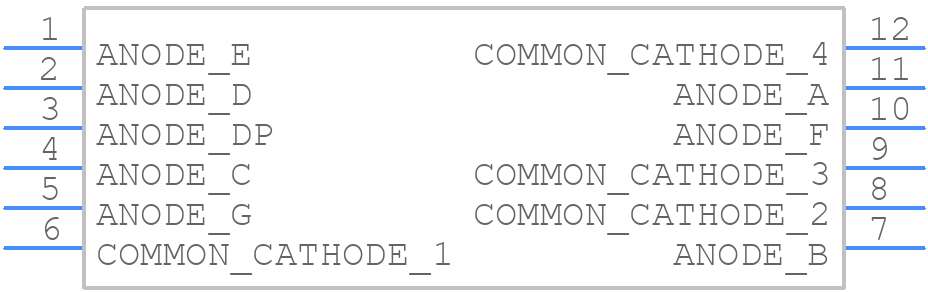

Symbol

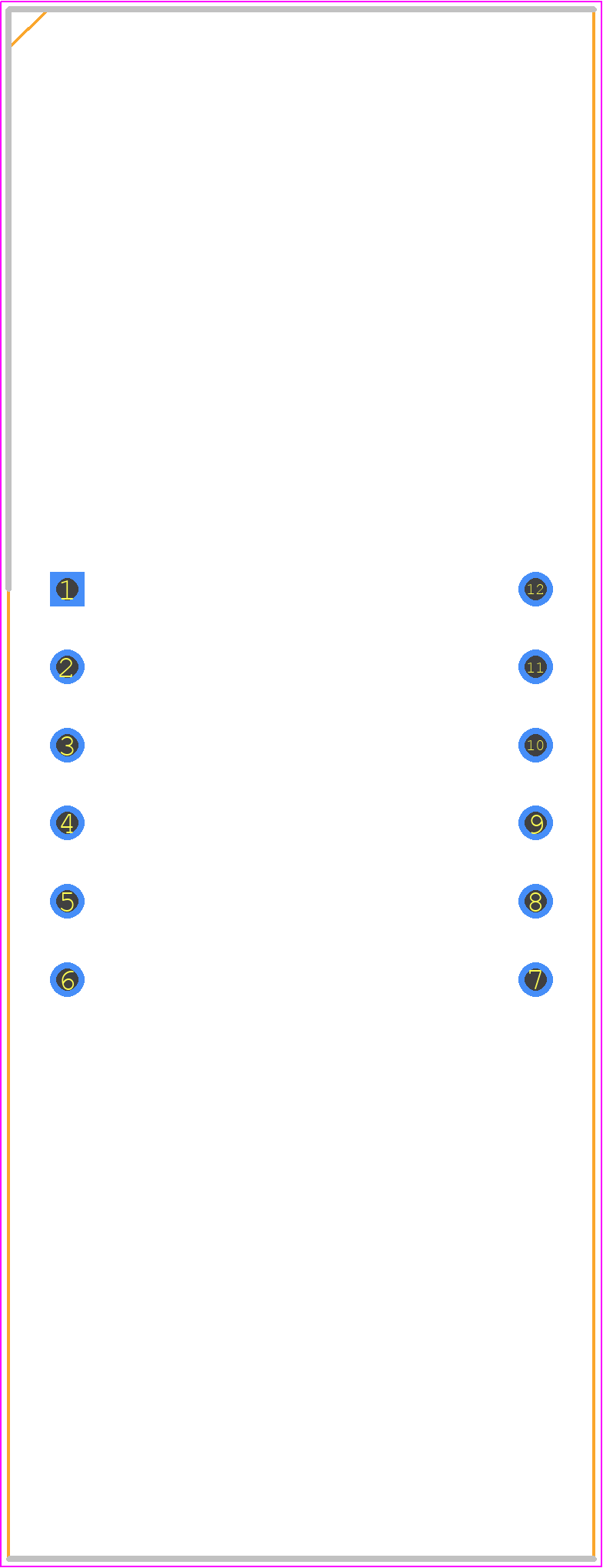

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for OSL-40562-LX
- Part Number OSL-40562-LX
- Manufacturer OptoSupply
- Pin Count 12
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - OSL-40562-LX
- Released Date Oct 19, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
OSL-40562-LX Details
-
Manufacturer Part Number:
OSL-40562-LX
-
Manufacturer:
OptoSupply Limited
Trust Checks
Expert Contribution
System Verified
Community Approved
OSL-40562-LX Overview
Use the download button to access the OSL-40562-LX schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like OSL-4,
or try a keyword search, such as Visible LEDs
