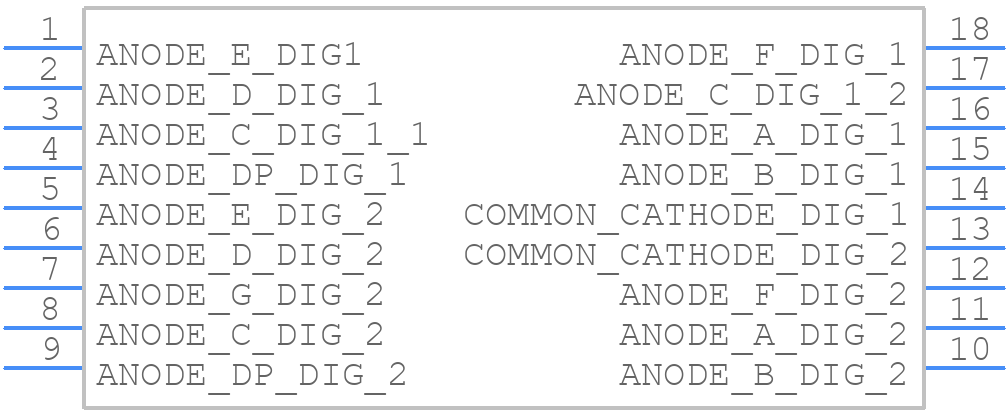

Symbol

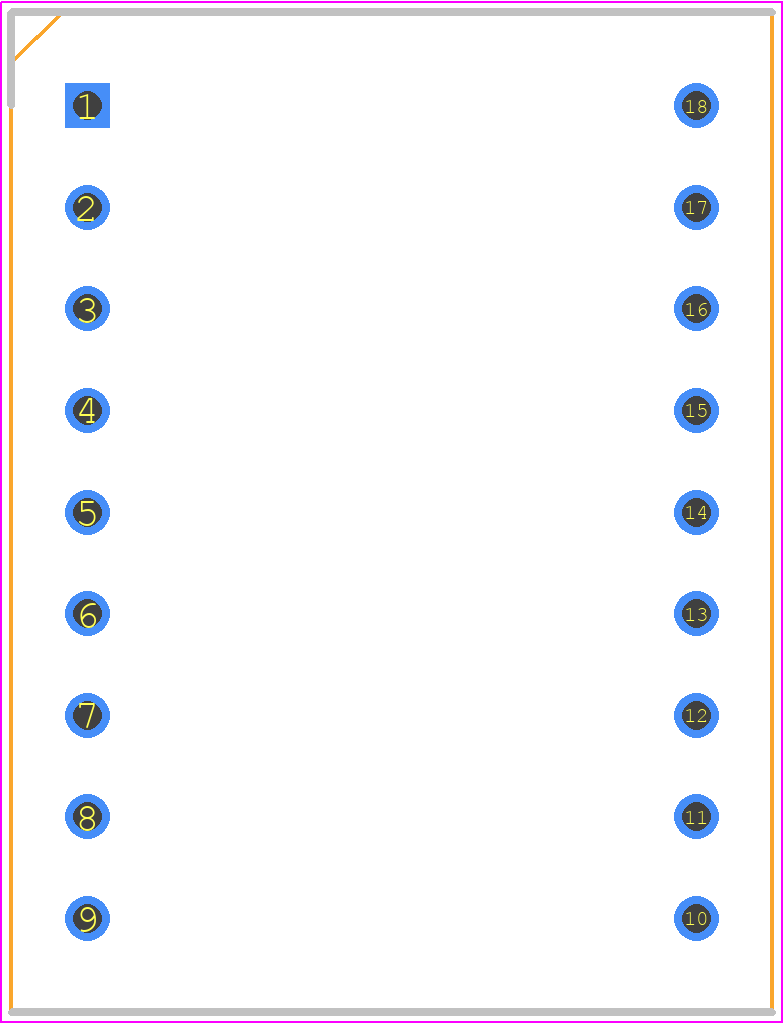

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for OSL20561-LX
- Part Number OSL20561-LX
- Manufacturer TruOpto
- Pin Count 18
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - OSL20561-LX
- Released Date Aug 1, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
OSL20561-LX Details
-
Manufacturer Part Number:
OSL20561-LX
-
Manufacturer:
OptoSupply Limited
Trust Checks
Community Provided
System Verified
Community Approved
OSL20561-LX Overview
Use the download button to access the OSL20561-LX schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like OSL20,
or try a keyword search, such as Visible LEDs
