OSL40562-IR - OptoSupply

Description: 0.56”FOUR DIGIT DISPLAY, Common Anode Type

Download OSL40562-IR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this OSL40562-IR model

Email notifications will be applied after download.

Send part feedback

Symbol

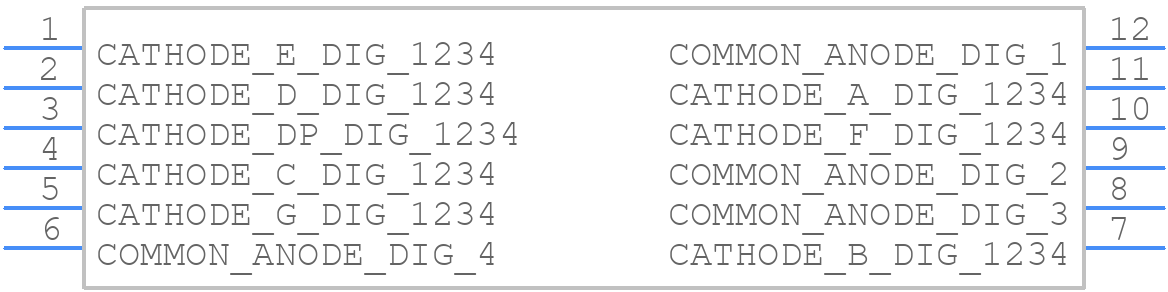

OSL40562-IR - OptoSupply - PCB symbol

PCB Footprints

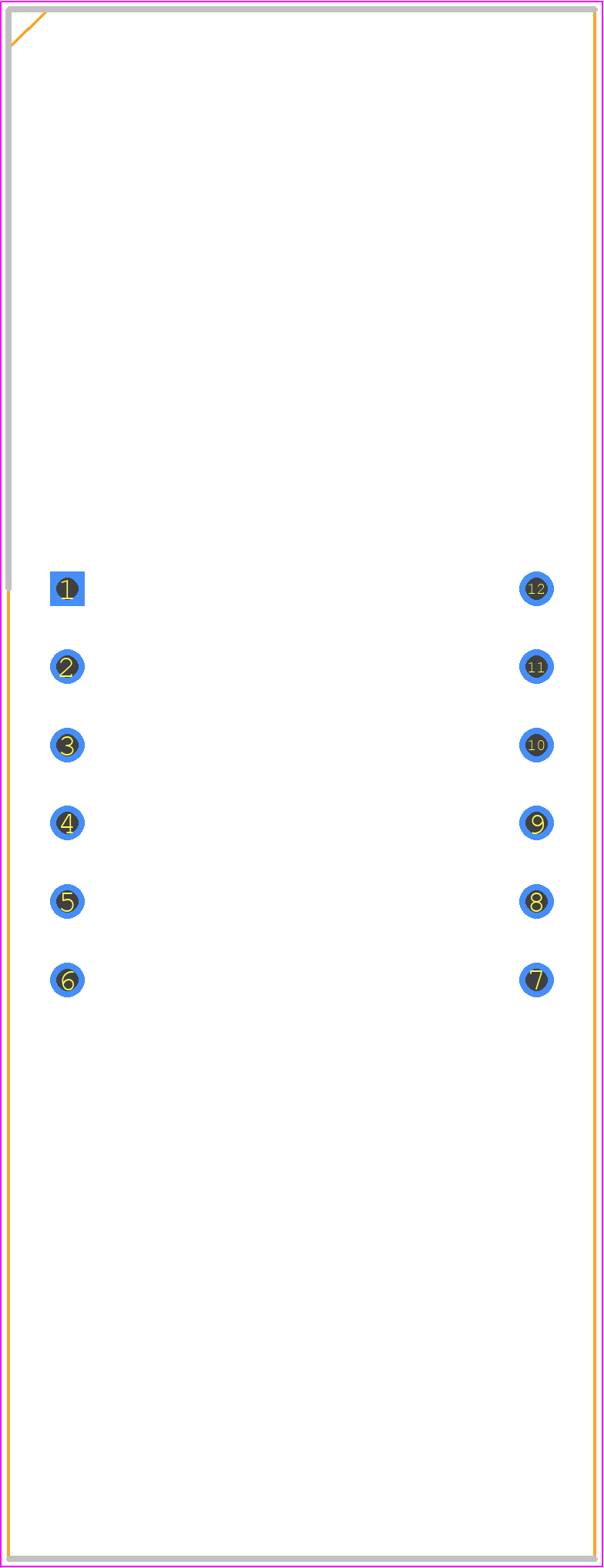

OSL40562-IR - OptoSupply PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - OSL40562-IR-2020

Datasheet Download Datasheet
Stock & Prices Price & Stock for OSL40562-IR
Part Number OSL40562-IR
Manufacturer OptoSupply
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - OSL40562-IR-2020
Released Date Nov 4, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

OSL40562-IR Details

Manufacturer Part Number:
OSL40562-IR
Manufacturer:
OptoSupply Limited
