OSR55630C1D (TYPE B) - OptoSupply

Description: LED; SMD; 5630; red; 10÷20lm; 5.6x3x0.9mm; 120°; 1.8÷2.6V; 150mA

Download OSR55630C1D (TYPE B) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this OSR55630C1D (TYPE B) model

Email notifications will be applied after download.

Send part feedback

Symbol

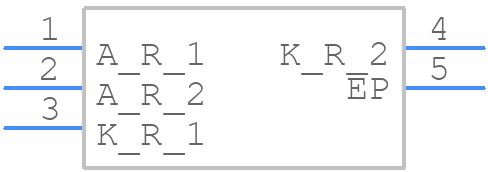

OSR55630C1D (TYPE B) - OptoSupply - PCB symbol

PCB Footprints

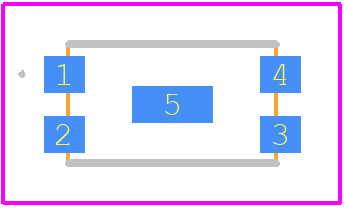

OSR55630C1D (TYPE B) - OptoSupply PCB footprint - Other - Other - OSR55630C1D (TYPE B)-3

3D Models

OSR55630C1D (TYPE B) - OptoSupply - 3D model - Other - OSR55630C1D (TYPE B)-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for OSR55630C1D (TYPE B)
Part Number OSR55630C1D (TYPE B)
Manufacturer OptoSupply
Pin Count 5
Part Category LED
Package Category Other
Footprint Name Other - OSR55630C1D (TYPE B)-3
Released Date May 19, 2023
Last Modified Date May 19, 2023 8:35 AM UTC
Pinout / Pin List Click Here (Member Only)

OSR55630C1D (TYPE B) Details

Manufacturer Part Number:
OSR55630C1D (TYPE B)
Manufacturer:
OptoSupply Limited
