OSTTC052162 - On Shore Technology Inc.

Description: Conn Terminal Block 5 POS 5.08mm Solder ST Thru-Hole 15A

Download OSTTC052162 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OSTTC052162 - On Shore Technology Inc. - PCB symbol
click to zoom
PCB Footprints

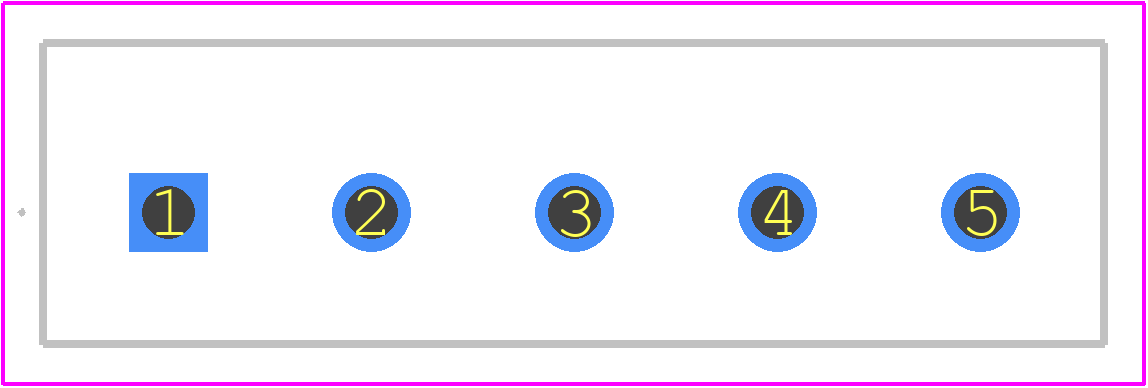

OSTTC052162 - On Shore Technology Inc. PCB footprint - Other - Other - OSTTC052162-1
click to zoom
3D Models
OSTTC052162 - On Shore Technology Inc. - 3D model - Other - OSTTC052162-1
click to zoom

OSTTC052162 Details

  • Manufacturer Part Number:

    OSTTC052162

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Tunisia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    On-Shore Technology Inc

  • YTEOL:

    6.81

  • Additional Feature:

    STANDARD: UL 94V-0; THERMOPLASTIC

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Gauge:

    14 AWG

OSTTC052162 Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This layout helps to dissipate heat efficiently and reduces thermal resistance.
  • Use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Ensure the component is properly aligned and the solder joints are clean and free of oxidation.
  • The maximum allowed voltage transient is 1.5 times the rated voltage for a duration of 100ms. Exceeding this limit may cause damage to the component.
  • Yes, but it's recommended to apply a conformal coating to protect the component from moisture. Ensure the coating is compatible with the component's materials and follows the manufacturer's guidelines.
  • Use a multimeter to measure voltage and current at the input and output pins. Check for signs of overheating, such as discoloration or deformation. Consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OSTTC052162 Overview

Use the download button to access the OSTTC052162 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OSTTC, or try a keyword search, such as Terminals and Terminal Blocks
