OX-220-0038-20M00 - Vectron

Description: Reflow Process Compatible • Surface Mount package • SC_CUT Crystal • Low Profile Compact Package (8.3mm) • Standard Frequencies: 10; 12.8; 19.2; 20; 26; 30.72 Mhz

Download OX-220-0038-20M00 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this OX-220-0038-20M00 model

Email notifications will be applied after download.

Send part feedback

Symbol

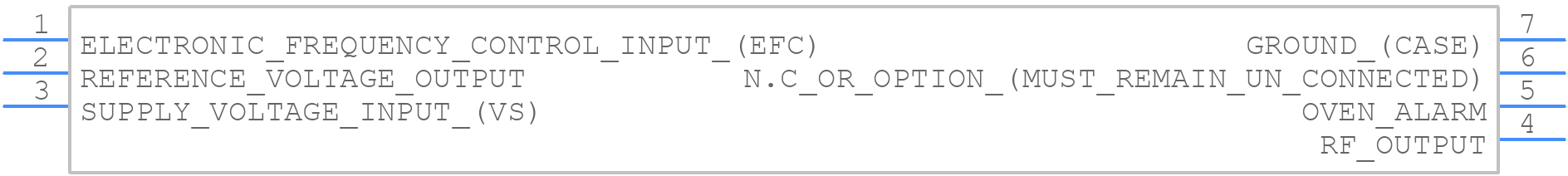

OX-220-0038-20M00 - Vectron - PCB symbol

PCB Footprints

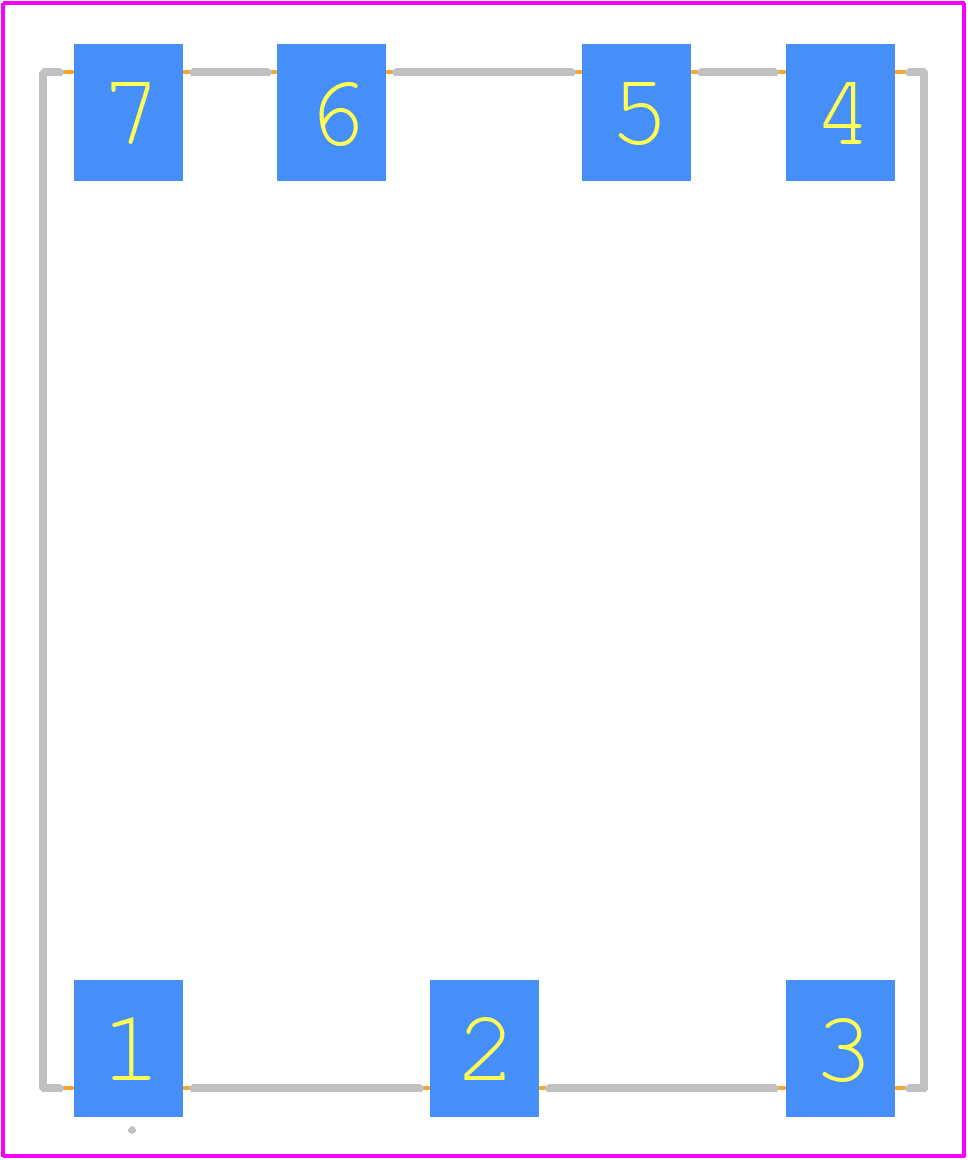

OX-220-0038-20M00 - Vectron PCB footprint - Other - Other - OX-220-0038-20M00-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for OX-220-0038-20M00
Part Number OX-220-0038-20M00
Manufacturer Vectron
Pin Count 7
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - OX-220-0038-20M00-1
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 12:35 PM UTC
Pinout / Pin List Click Here (Member Only)

OX-220-0038-20M00 Details

Manufacturer Part Number:
OX-220-0038-20M00
Manufacturer:
Vectron International (now Microchip)

Trust Checks

Expert Contribution

System Verified

Community Approved

OX-220-0038-20M00 Overview

Use the download button to access the OX-220-0038-20M00 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like OX-22, or try a keyword search, such as OCXO
