OX-249-CJF-107FFS-100M000000 footprint, schematic symbol and 3D model by Microchip

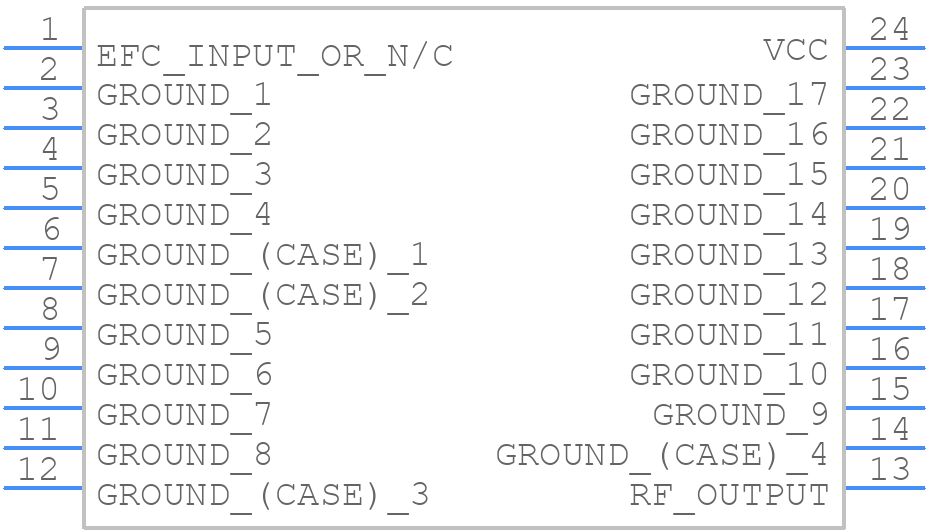

Symbol

click to zoom

PCB Footprints

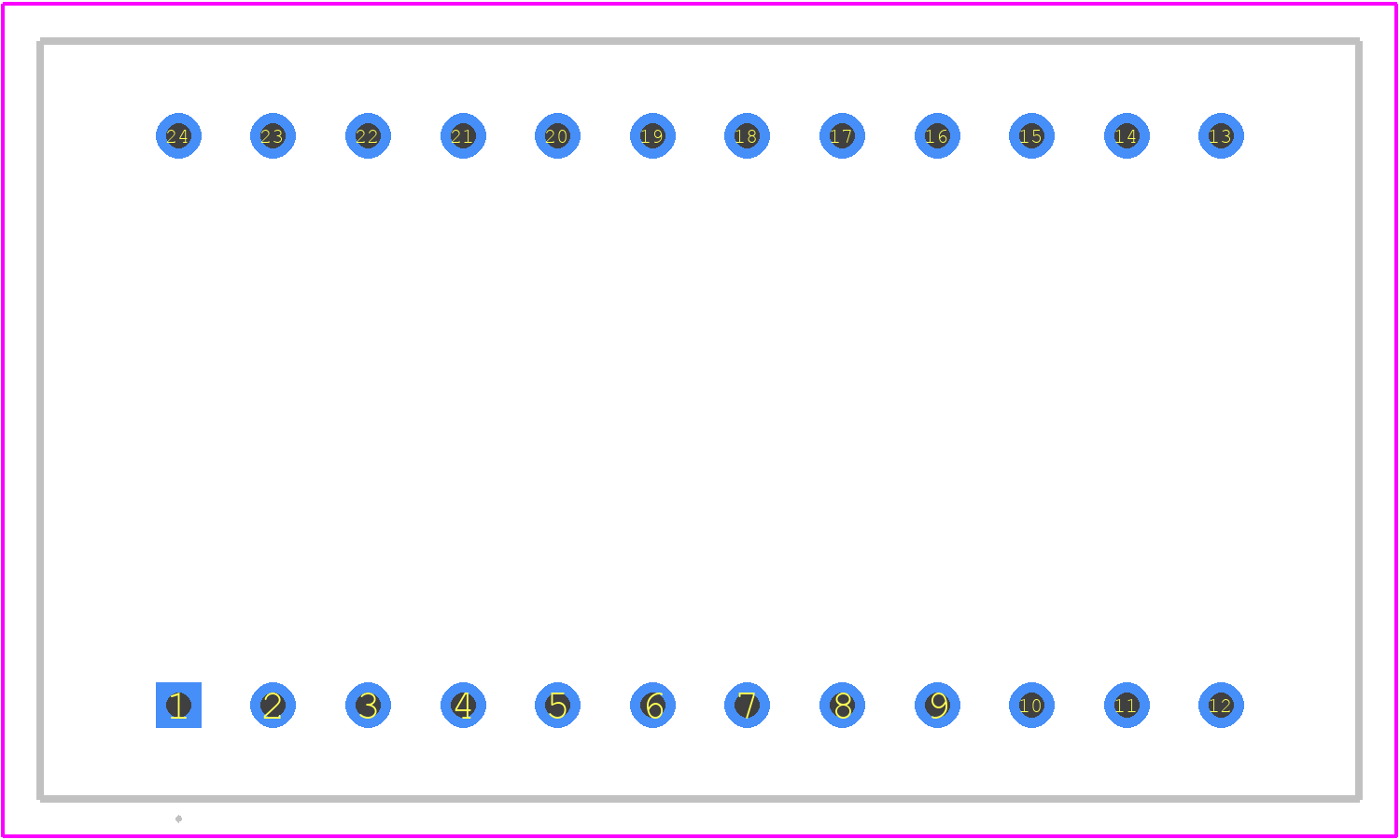

OX-249-CJF-107FFS-100M000000 - Microchip PCB footprint - Other - Other - 24 Pin DDIP_2026

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for OX-249-CJF-107FFS-100M000000
Part Number OX-249-CJF-107FFS-100M000000
Manufacturer Microchip
Pin Count 24
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - 24 Pin DDIP_2026
Released Date May 20, 2026
Last Modified Date May 20, 2026 2:12 PM UTC
Pinout / Pin List Click Here (Member Only)

OX-249-CJF-107FFS-100M000000 Details

Manufacturer Part Number:
OX-249-CJF-107FFS-100M000000
Part Life Cycle Code:
Active
Manufacturer:
Microchip Technology Inc
Oscillator Type:
SINE

Trust Checks

Community Provided

System Verified

Community Approved

OX-249-CJF-107FFS-100M000000 Overview

Use the download button to access the OX-249-CJF-107FFS-100M000000 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like OX-24, or try a keyword search, such as OCXO
