OZ-SH-112D,294 - TE Connectivity

Description: General Purpose Relays SPDT 16A 12VDC SEALD

Download OZ-SH-112D,294 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OZ-SH-112D,294 - TE Connectivity - PCB symbol
click to zoom

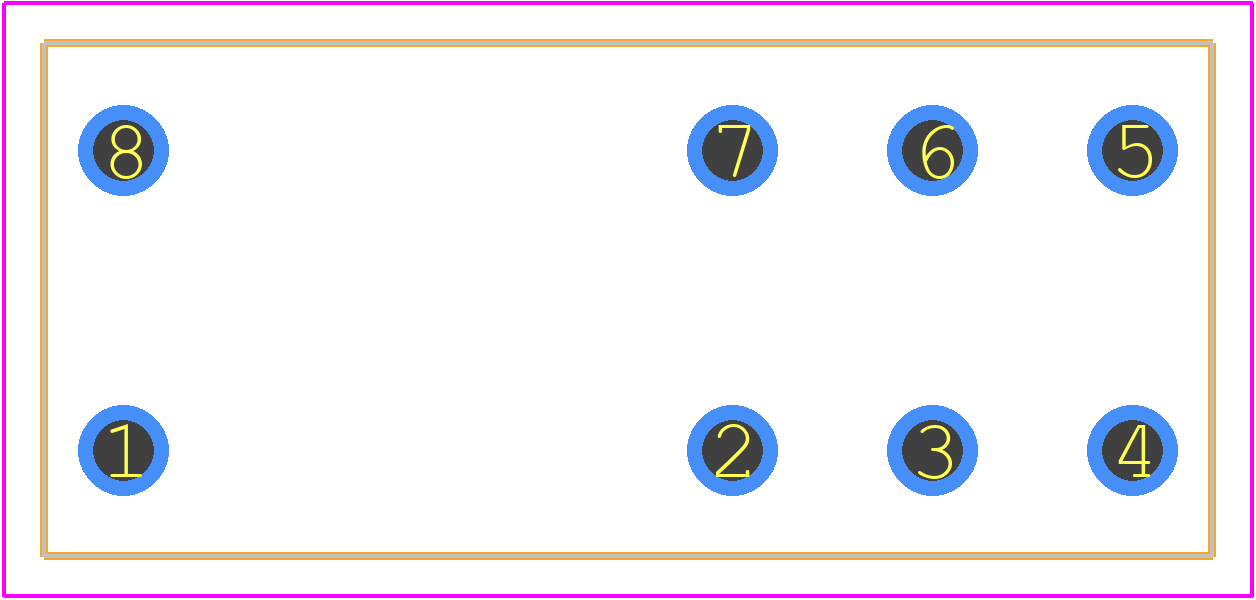

PCB Footprints
OZ-SH-112D,294 - TE Connectivity PCB footprint - Other - Other - OZ-SH-112D,294-2
click to zoom
3D Models
OZ-SH-112D,294 - TE Connectivity - 3D model - Other - OZ-SH-112D,294-2
click to zoom

OZ-SH-112D,294 Details

  • Manufacturer Part Number:

    OZ-SH-112D,294

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.50

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    12.8 mm

  • Body Height:

    20.6 mm

  • Body Length or Diameter:

    29.21 mm

  • Coil Current(DC)-Max:

    0.06 A

  • Coil Operate Voltage(DC):

    8.4 V

  • Coil Power:

    720 mW

  • Coil Release Voltage(DC):

    0.9 V

  • Coil Resistance:

    200 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    16A@120VAC

  • Contact Current(AC)-Max:

    16 A

  • Contact Current(DC)-Max:

    16 A

  • Contact (DC) Max Rating R Load:

    16A@110VDC

  • Contact Voltage(AC)-Max:

    240 V

  • Contact Voltage(DC)-Max:

    24 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Material:

    SILVER TIN ALLOY

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -30 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    29.2mm x 12.8mm x 20.6mm

  • Reference Standard:

    CSA; TUV; UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    8 ms

  • Sealing:

    PLASTIC SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

OZ-SH-112D,294 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in). It's essential to follow this torque range to ensure reliable connections and prevent damage to the terminals.
  • Yes, the OZ-SH-112D,294 is designed to withstand high-vibration environments. The connector's rugged construction and secure screw terminals ensure reliable connections even in applications with intense vibrations.
  • The OZ-SH-112D,294 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments.
  • The operating temperature range for OZ-SH-112D,294 is -40°C to 125°C (-40°F to 257°F). The connector is designed to perform reliably in a wide range of temperatures, making it suitable for various industrial and automotive applications.
  • While the OZ-SH-112D,294 is designed for wire sizes between 0.5 mm² and 2.5 mm², it's possible to use it with smaller or larger wire sizes. However, this may require additional processing or specialized tools, and it's essential to ensure the wire is properly secured and meets the connector's specifications.
