OZ-SH-112LM1,294 - TE Connectivity

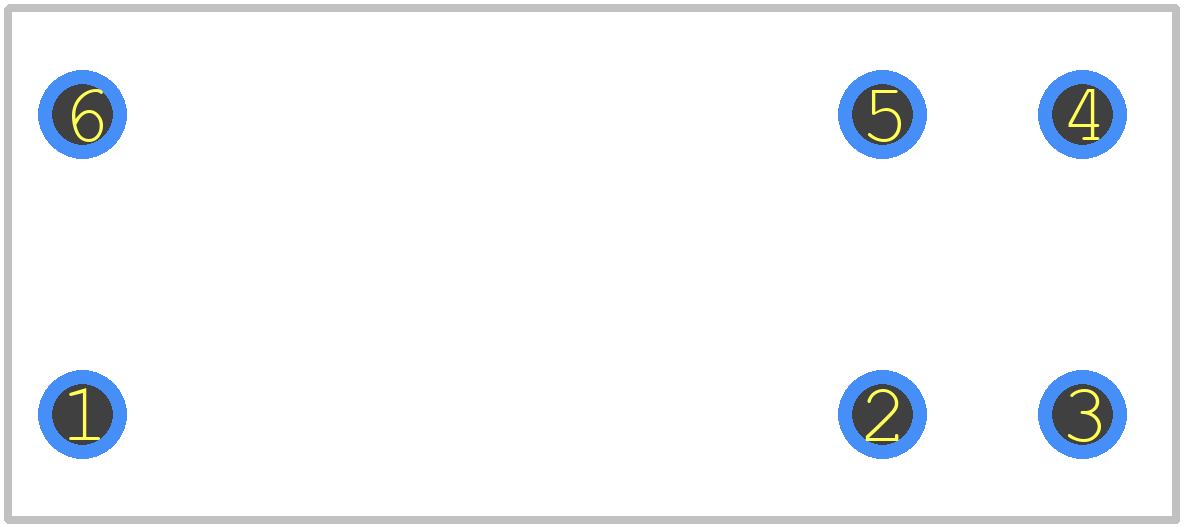

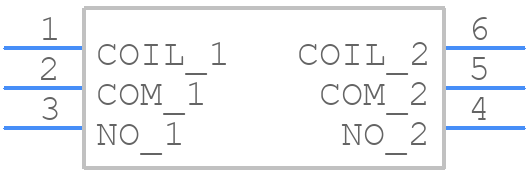

OZ-SH-112LM1,294 Details

• Manufacturer Part Number:

  OZ-SH-112LM1,294

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.50

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Body Breadth:

  12.8 mm

• Body Height:

  20.6 mm

• Body Length or Diameter:

  29.21 mm

• Coil Current(DC)-Max:

  0.045 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  540 mW

• Coil Release Voltage(DC):

  0.6 V

• Coil Resistance:

  270 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  16A@120VAC

• Contact Current(AC)-Max:

  16 A

• Contact Current(DC)-Max:

  16 A

• Contact (DC) Max Rating R Load:

  16A@110VDC

• Contact Voltage(AC)-Max:

  240 V

• Contact Voltage(DC)-Max:

  24 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  SILVER TIN ALLOY

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  PANEL MOUNT

• Operate Time:

  20 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -30 °C

• Packing Method:

  BOX

• Physical Dimension:

  29.2mm x 12.8mm x 20.6mm

• Reference Standard:

  CSA; TUV; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM A

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  8 ms

• Sealing:

  PLASTIC SEALED

• Surface Mount:

  NO

• Termination Type:

  SOLDER/QUICK CONNECT
