P3A1604UKAZ - NXP

Description: Translation - Voltage Levels 4-Bit Dual Supply Bidirectional I3C/I C-Bus, SMBus and SPI Voltage-Level Translator Auto direction sensing and bidirectional voltage level translation • Wide supply voltage range: – VCCA: 0.72 V to 1.98 V and VCCB: 1.62 V to 3.63 V • No power-sequencing required • Maximum data rate (DDR) per bit – Open-drain: 6.8 Mbit/s (3.4 MHz) – Push-pull: 40 Mbit/s (20 MHz) • Support I3C/I2C/SMBus/SPI/UART interfaces • Longer one-shot pulse for driving larger capacitive loads with m

Download P3A1604UKAZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

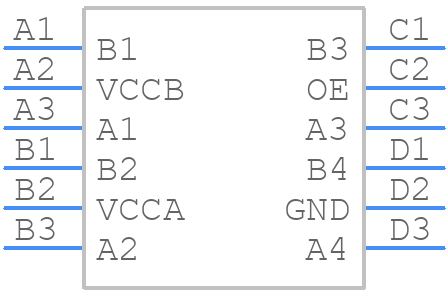

P3A1604UKAZ - NXP - PCB symbol
click to zoom
PCB Footprints
P3A1604UKAZ - NXP PCB footprint - BGA - BGA - SOT2063-4
click to zoom
3D Models
P3A1604UKAZ - NXP - 3D model - BGA - SOT2063-4
click to zoom

P3A1604UKAZ Details

  • Manufacturer Part Number:

    P3A1604UKAZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Delay-Max:

    7 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-XBGA-B12

  • Length:

    1.405 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.525 mm

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    0.72 V

  • Supply Voltage-Nom:

    0.8 V

  • Supply Voltage1-Max:

    3.63 V

  • Supply Voltage1-Min:

    1.62 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.055 mm

P3A1604UKAZ Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11173, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. NXP recommends using a low-ESR capacitor with a value between 4.7uF to 10uF, and a voltage rating of at least 1.5 times the input voltage. Refer to the application note AN11173 for more details.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a level shifter to ensure the EN pin voltage remains within the specified range.
  • To ensure proper power-up and power-down, NXP recommends following a specific sequence: 1) Apply input voltage, 2) Wait for the input voltage to stabilize, 3) Apply EN signal, and 4) Wait for the output voltage to stabilize. Refer to the datasheet for more details.
  • NXP recommends using a low-ESR output capacitor with a value between 4.7uF to 10uF, and a voltage rating of at least 1.5 times the output voltage. Ceramic or polymer capacitors are suitable for this application. Refer to the application note AN11173 for more details.
