P50-040S-RR1-EA footprint, schematic symbol and 3D model by 3M

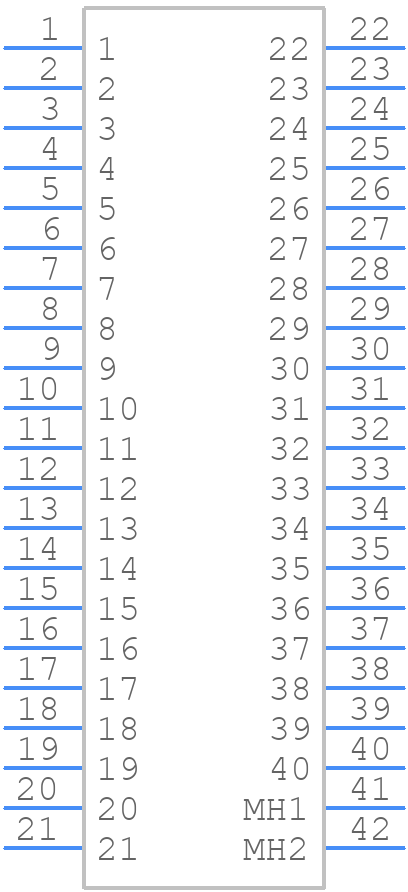

Symbol

click to zoom

PCB Footprints

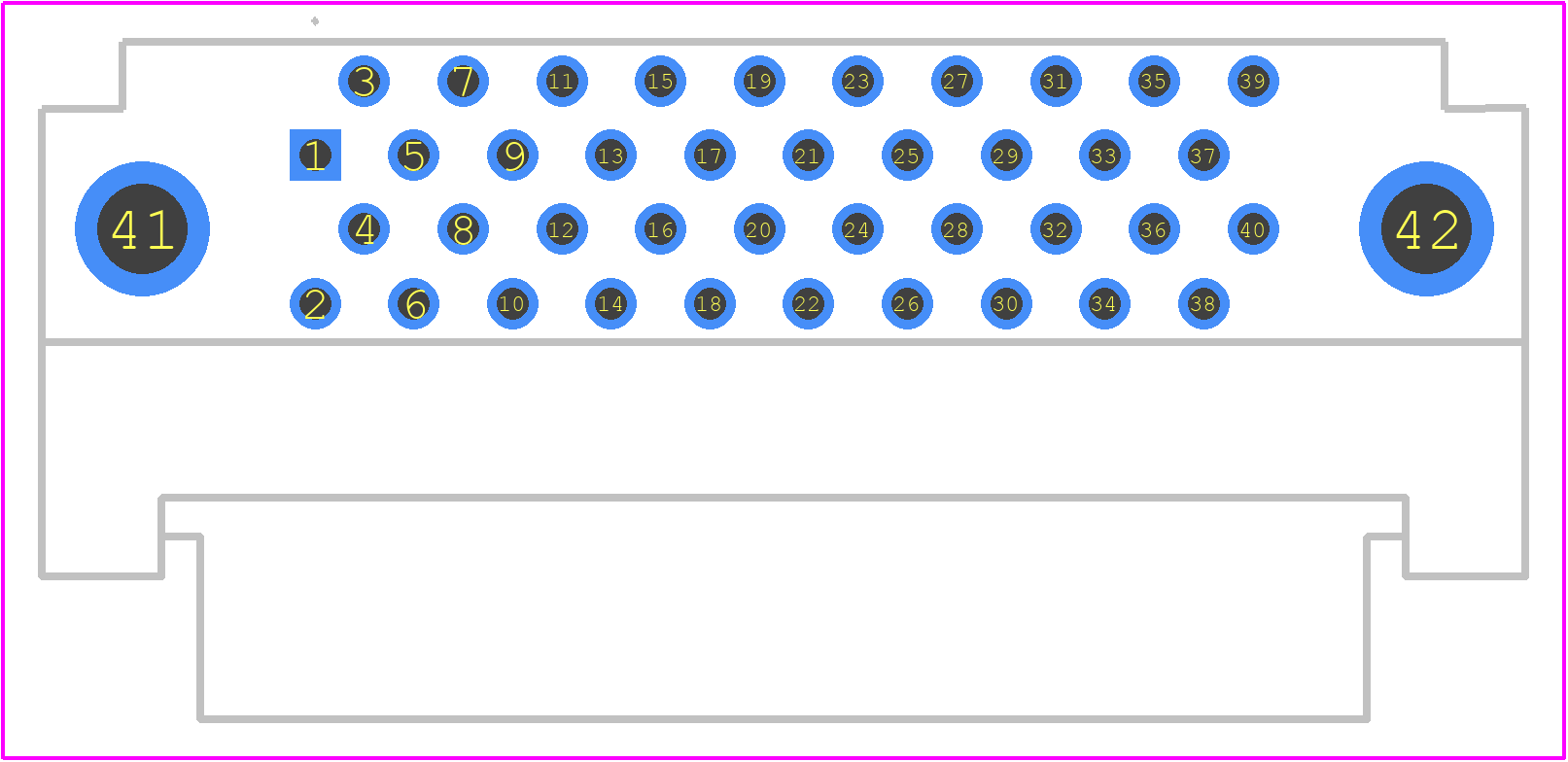

P50-040S-RR1-EA - 3M PCB footprint - Other - Other - P50-040S-RR1-EA-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for P50-040S-RR1-EA
Part Number P50-040S-RR1-EA
Manufacturer 3M
Pin Count 42
Part Category Connector
Package Category Other
Footprint Name Other - P50-040S-RR1-EA-3
Released Date Jul 19, 2024
Last Modified Date Jul 19, 2024 6:24 AM UTC
Pinout / Pin List Click Here (Member Only)

P50-040S-RR1-EA Details

Manufacturer Part Number:
P50-040S-RR1-EA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
10 Weeks
Manufacturer:
3M Interconnect
YTEOL:
9.15
Additional Feature:
3M, PANEL MOUNTABLE
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
GOLD FLASH OVER NICKEL
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
40
UL Flammability Code:
94V-0

P50-040S-RR1-EA Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
Yes, the P50-040S-RR1-EA is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
The P50-040S-RR1-EA has a rating of IP67, which means it can withstand temporary immersion in water and is suitable for outdoor or harsh environmental applications. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
The maximum operating temperature for the P50-040S-RR1-EA is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
While the datasheet specifies 24-18 AWG wire sizes, it's possible to use this connector with other wire sizes. However, it's essential to consult with 3M Interconnect or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the application's requirements.

Trust Checks

Community Provided

System Verified

Community Approved

P50-040S-RR1-EA Overview

Use the download button to access the P50-040S-RR1-EA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like P50-0, or try a keyword search, such as Headers and Edge Type Connectors
