The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
Yes, the P50-080SG-SR1-EA is designed to withstand high-vibration environments. The connector's screw terminals and rugged construction make it suitable for use in applications with intense vibration, such as industrial machinery or transportation systems.
The P50-080SG-SR1-EA has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure that the connector is properly sealed and installed to maintain its environmental rating. Additionally, the connector's materials may degrade over time when exposed to direct sunlight or extreme temperatures, so it's crucial to consider these factors when designing for outdoor use.
While the datasheet specifies 24-18 AWG wire sizes, it's possible to use this connector with other wire sizes. However, it's essential to ensure that the wire size is compatible with the terminal's wire acceptance range and that the connection is reliable and secure. Consult with a 3M representative or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
The P50-080SG-SR1-EA has an operating temperature range of -40°C to 105°C (-40°F to 221°F). This range is suitable for most industrial and commercial applications, but it's essential to consider the temperature range of your specific application to ensure the connector's reliability and performance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
P50-080SG-SR1-EA Overview

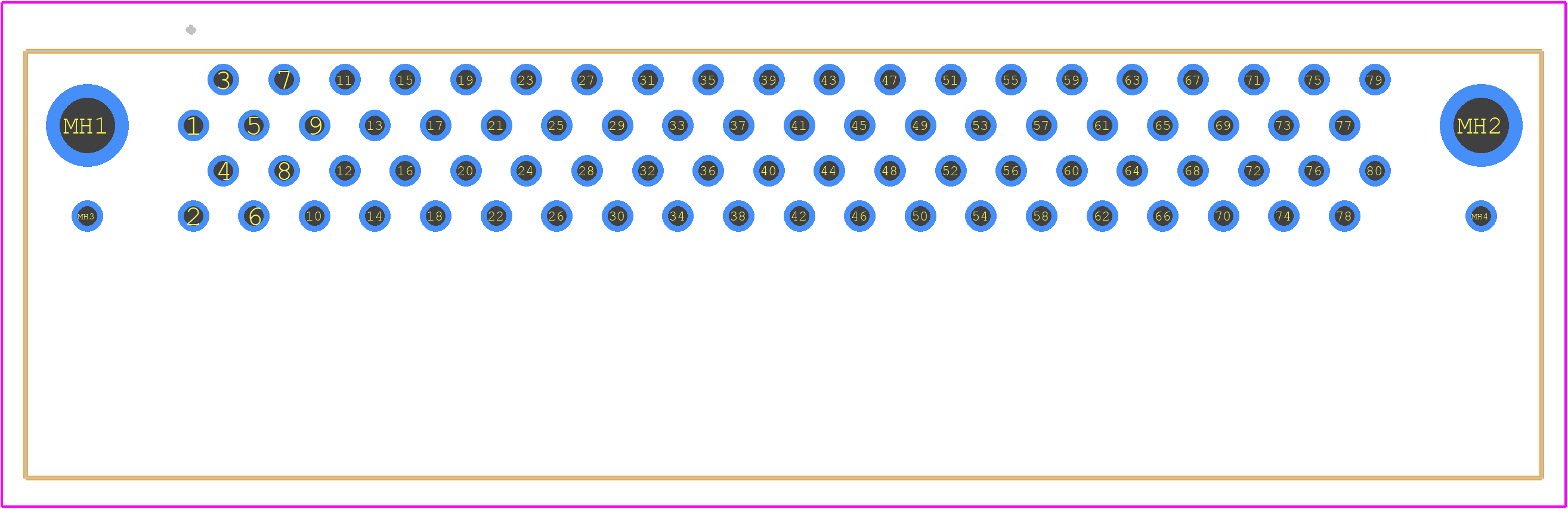

Use the download button to access the P50-080SG-SR1-EA schematic symbol, PCB footprint, and 3D model.
