- Part Number P5009NL
- Manufacturer Yageo Group
- Pin Count 10
- Part Category Transformer
- Package Category Other
- Footprint Name Other - P5009NL-2
- Released Date Jun 18, 2021
- Last Modified Date Feb 4, 2026 2:20 PM UTC
- Pinout / Pin List Click Here (Member Only)
P5009NL Details
-
Manufacturer Part Number:
P5009NL
-
Manufacturer:
YAGEO Corporation
Trust Checks
Community Provided
System Verified
Community Approved
P5009NL Overview

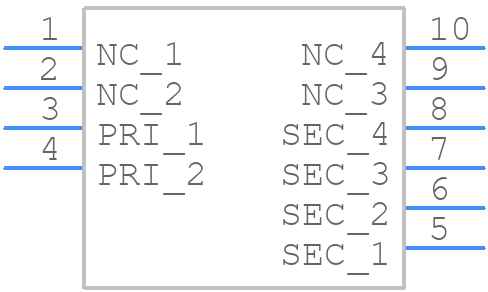

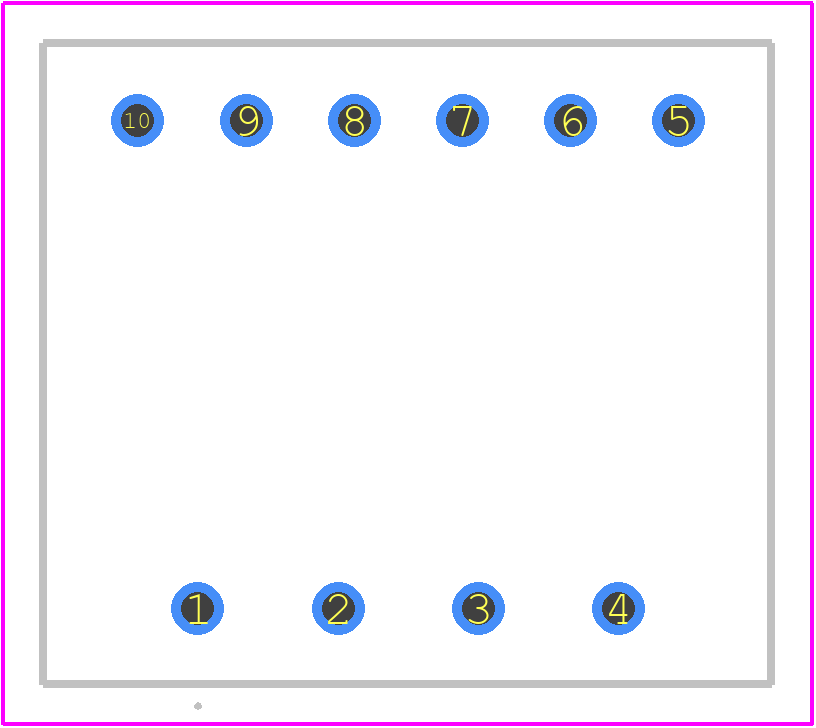

Use the download button to access the P5009NL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P5009,
or try a keyword search, such as SMPS Transformers
