P6KE120A-E3/54 - Vishay

Description: ESD Suppressors / TVS Diodes 600W 120V Unidirect

Download P6KE120A-E3/54 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
P6KE120A-E3/54 - Vishay - PCB symbol
click to zoom
PCB Footprints

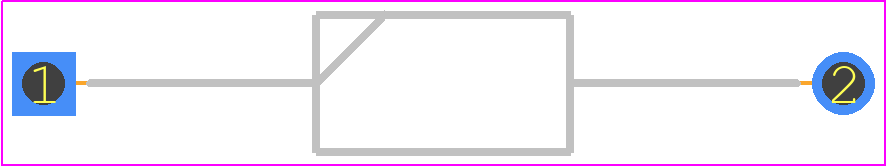

P6KE120A-E3/54 - Vishay PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - DO-15 (DO-204AC)_
click to zoom
3D Models
P6KE120A-E3/54 - Vishay - 3D model - Diodes, Axial Diameter Horizontal Mounting - DO-15 (DO-204AC)_
click to zoom

P6KE120A-E3/54 Details

  • Manufacturer Part Number:

    P6KE120A-E3/54

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.16

  • Additional Feature:

    EXCELLENT CLAMPING CAPABILITY

  • Breakdown Voltage-Max:

    126 V

  • Breakdown Voltage-Min:

    114 V

  • Breakdown Voltage-Nom:

    120 V

  • Case Connection:

    ISOLATED

  • Clamping Voltage-Max:

    165 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-204AC

  • JESD-30 Code:

    O-PALF-W2

  • JESD-609 Code:

    e3

  • Non-rep Peak Rev Power Dis-Max:

    600 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    5 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    102 V

  • Surface Mount:

    NO

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

P6KE120A-E3/54 Frequently Asked Questions (FAQs)

  • The recommended footprint and land pattern for the P6KE120A-E3/54 can be found in the Vishay Intertechnologies' application note AN483, which provides guidelines for surface mount assembly of diodes and rectifiers.
  • The P6KE120A-E3/54 is an electrostatic discharge (ESD) sensitive device. Handling should be done with proper ESD protection, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
  • The maximum allowable voltage derating for the P6KE120A-E3/54 is typically 10-15% below the maximum rated voltage, depending on the specific application and environmental conditions.
  • Yes, the P6KE120A-E3/54 is suitable for high-reliability applications, such as aerospace or automotive, due to its high-quality construction and rigorous testing. However, additional testing and qualification may be required for specific applications.
  • The correct orientation of the P6KE120A-E3/54 on the PCB is indicated by the polarity marking on the device. The cathode (negative leg) is marked with a band or a dot, and should be oriented according to the PCB layout and application requirements.
