CUI Inc recommends a PCB layout with a solid ground plane, minimal trace lengths, and a decoupling capacitor (e.g., 10uF) between the input and output pins to ensure stable operation and minimize EMI.
To ensure reliable startup and shutdown, CUI Inc recommends a soft-start circuit or a ramp-up/ramp-down control signal to prevent inrush currents and voltage spikes. Additionally, a minimum input voltage of 10.5V is recommended for reliable startup.
The maximum allowable capacitance on the output is 220uF. Exceeding this value may cause instability or oscillations in the converter. It's essential to follow the recommended output capacitance value to ensure reliable operation.
The P783-Q24-S3-S is rated for operation up to 85°C ambient temperature. However, derating the output power is necessary for temperatures above 70°C to prevent overheating. Consult the datasheet for derating curves and guidelines.
To troubleshoot issues, start by verifying the input voltage, output load, and PCB layout. Check for proper connections, soldering, and component values. Use an oscilloscope to monitor the input and output waveforms, and consult the datasheet for troubleshooting guidelines and fault detection methods.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
P783-Q24-S3-S Overview

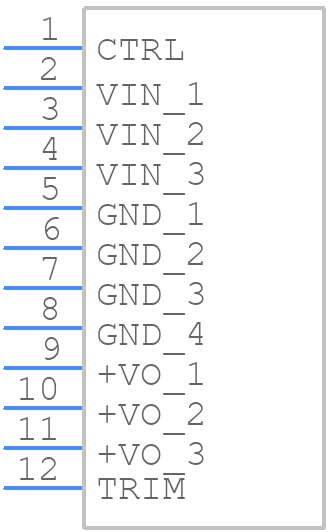

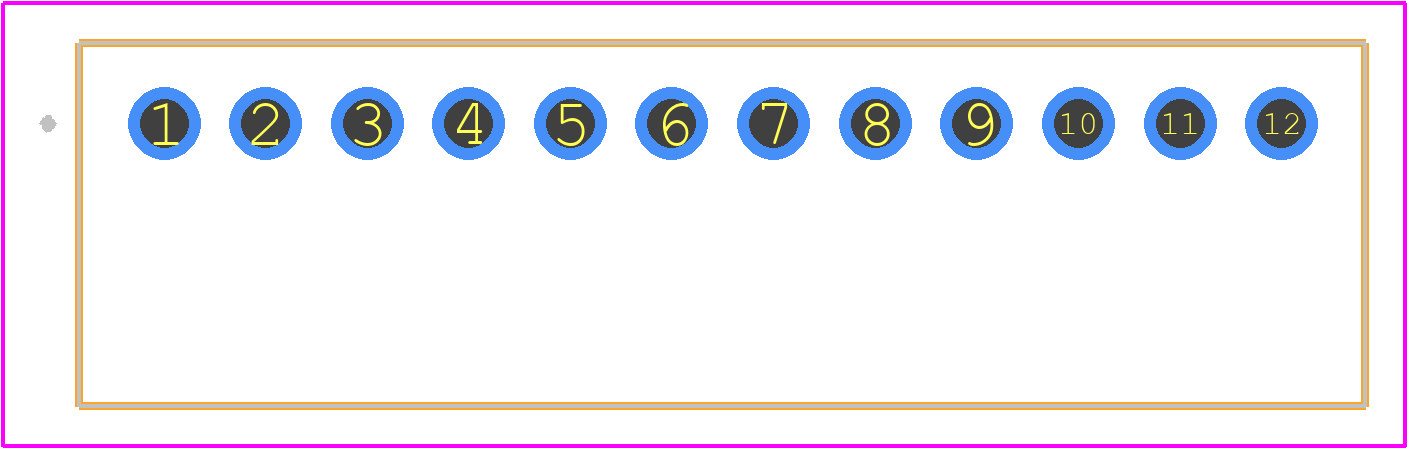

Use the download button to access the P783-Q24-S3-S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P783-,
or try a keyword search, such as Power Supply Modules
