P80C32SBPN - NXP

P80C32SBPN Details

• Manufacturer Part Number:

  P80C32SBPN

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

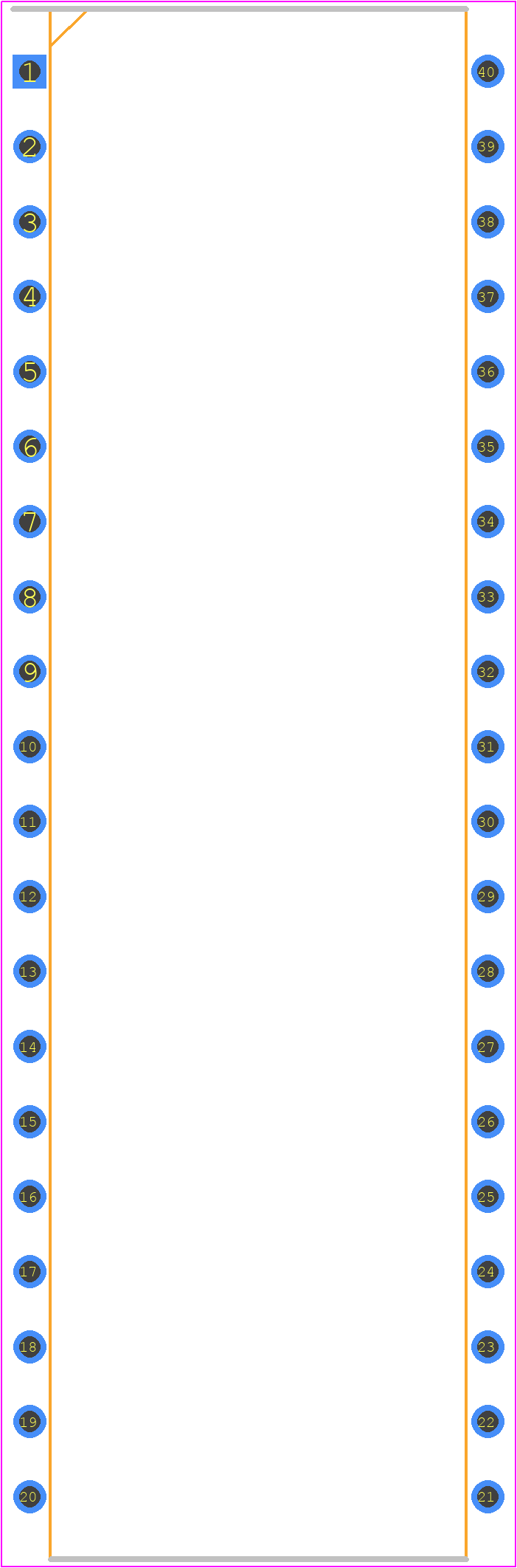

• Package Description:

  0.600 INCH, PLASTIC, MO-015, SOT-129-1, DIP-40

• Pin Count:

  40

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Has ADC:

  NO

• Address Bus Width:

  16

• Bit Size:

  8

• CPU Family:

  8051

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  8

• JESD-30 Code:

  R-PDIP-T40

• JESD-609 Code:

  e3

• Length:

  52 mm

• Number of I/O Lines:

  32

• Number of Terminals:

  40

• Operating Temperature-Max:

  70 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP40,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• RAM (bytes):

  256

• Seated Height-Max:

  4.7 mm

• Speed:

  16 MHz

• Supply Current-Max:

  15 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
