P822601 - Kyocera AVX

Description: AVX - P822601 - EMBEDDED ANTENNA, 1.7-2.7GHZ, 3.4DBI

Download P822601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

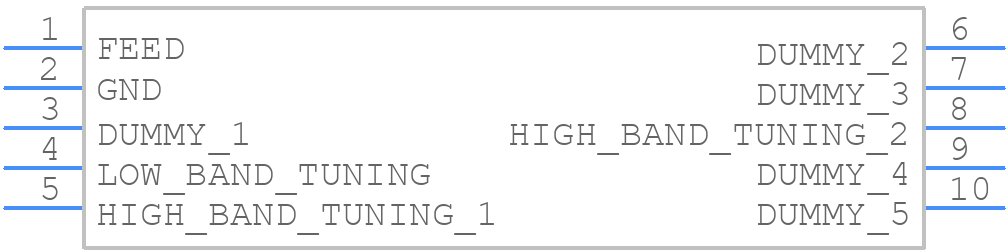

P822601 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

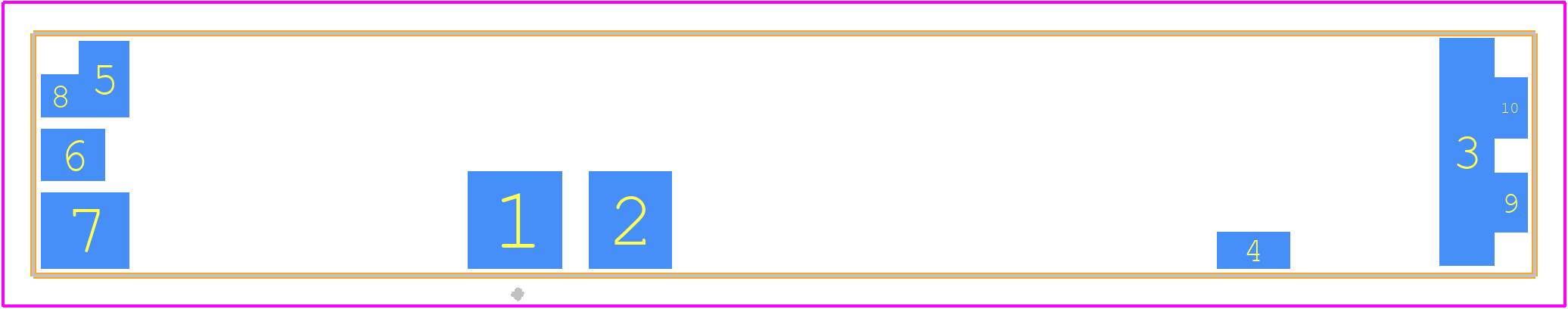

P822601 - Kyocera AVX PCB footprint - Other - Other - P822601-6
click to zoom
3D Models
P822601 - Kyocera AVX - 3D model - Other - P822601-6
click to zoom

P822601 Details

  • Manufacturer Part Number:

    P822601

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6

  • Additional Feature:

    IT CAN ALSO OPERATED AT 1710-2200 MHZ AND 2500-2700 MHZ

  • Application:

    CELLULAR/IOT/LORA/LPWA/LTE/RPMA/SIGFOX

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    7

  • Omnidirectional:

    NO

  • Operating Frequency-Max:

    960 MHz

  • Operating Frequency-Min:

    698 MHz

  • Polarization:

    LINEAR

  • RF/Microwave Device Type:

    MOBILE STATION ANTENNA

  • Surface Mount:

    YES

  • Transmission Power-Max:

    2 W

  • VSWR-Max:

    2.5

P822601 Frequently Asked Questions (FAQs)

  • The recommended land pattern for P822601 can be found in the Kyocera AVX Components' recommended land pattern document or by contacting their technical support team.
  • Handle the component by the body, avoid touching the leads or electrical contacts, and use anti-static wrist straps or mats to prevent electrostatic discharge damage.
  • The maximum reflow temperature for P822601 is 260°C, but it's recommended to follow the Kyocera AVX Components' recommended reflow profile for optimal results.
  • Yes, P822601 is designed to withstand vibrations, but it's recommended to follow the manufacturer's guidelines for vibration testing and to consult with their technical support team for specific application requirements.
  • Store P822601 components in their original packaging, in a dry, cool place, away from direct sunlight and moisture, and follow the manufacturer's recommended storage conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

P822601 Overview

Use the download button to access the P822601 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P8226, or try a keyword search, such as RF/Microwave Antennas

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
