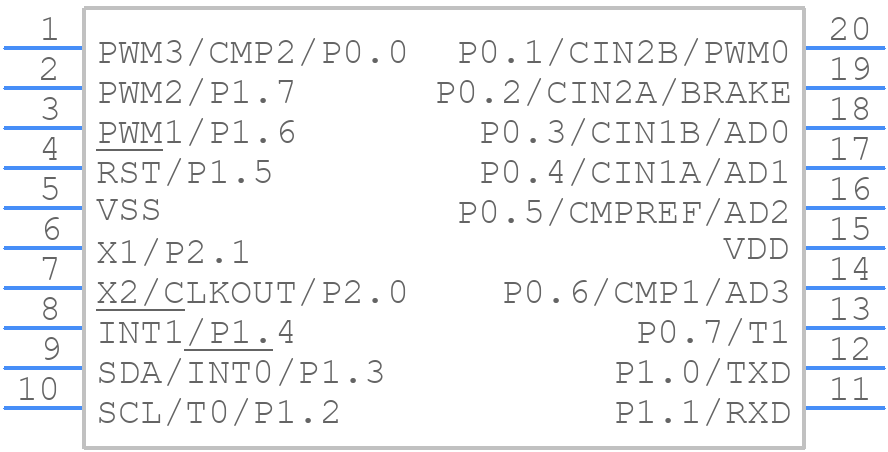

P87LPC768BD,512 - NXP

P87LPC768BD,512 Details

• Manufacturer Part Number:

  P87LPC768BD,512

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOP

• Package Description:

  7.50 MM, PLASTIC, MS-013, SOT163-1, SOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  SOT163-1

• Reach Compliance Code:

  Compliant

• HTS Code:

  8542.31.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES AT 2.7V MIN SUPPLY @ 10MHZ

• Bit Size:

  8

• Boundary Scan:

  YES

• CPU Family:

  8051

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e4

• Length:

  12.8 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  18

• Number of Terminals:

  20

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  70 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• RAM (bytes):

  128

• ROM (words):

  4096

• ROM Programmability:

  OTPROM

• Seated Height-Max:

  2.65 mm

• Speed:

  20 MHz

• Supply Current-Max:

  25 mA

• Supply Voltage-Max:

  6 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
