PA2512FKE071U5E - Yageo Group

Description: YAGEO, PA2512_E, Metal, SMD Chip, 1.5 mOhms, 1%, 2512 / 6332

Download PA2512FKE071U5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PA2512FKE071U5E - Yageo Group - PCB symbol
click to zoom
PCB Footprints

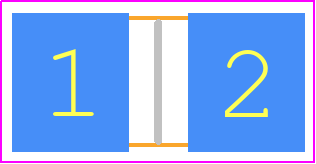

PA2512FKE071U5E - Yageo Group PCB footprint - Resistor Chip - Resistor Chip - 2512 (6432M)
click to zoom
3D Models
PA2512FKE071U5E - Yageo Group - 3D model - Resistor Chip - 2512 (6432M)
click to zoom

PA2512FKE071U5E Details

  • Manufacturer Part Number:

    PA2512FKE071U5E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    9

  • Additional Feature:

    ANTI-SULFUR

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.63 mm

  • Package Length:

    6.35 mm

  • Package Style:

    SMT

  • Package Width:

    3.18 mm

  • Packing Method:

    TR, EMBOSSED PLASTIC, 7 INCH

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.0015 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL PLATE

  • Temperature Coefficient:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    0.0387 V

PA2512FKE071U5E Frequently Asked Questions (FAQs)

  • The recommended land pattern for PA2512FKE071U5E is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This is to ensure proper soldering and to prevent solder bridging.
  • Yes, PA2512FKE071U5E is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating and to follow the recommended storage and handling procedures.
  • Yes, PA2512FKE071U5E is compatible with lead-free soldering processes. YAGEO Corporation uses a lead-free termination finish that meets the requirements of the RoHS directive.
  • The MSL of PA2512FKE071U5E is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering.
  • Yes, PA2512FKE071U5E is designed for high-frequency applications and has a self-resonant frequency of 100 MHz. However, it's essential to ensure that the component is properly decoupled and that the PCB layout is optimized for high-frequency operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PA2512FKE071U5E Overview

Use the download button to access the PA2512FKE071U5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PA251, or try a keyword search, such as Metal Strip Resistor
