PA2512FKF7W0U5E - Yageo Group

Description: 500 µOhms ±1% 2W Chip Resistor 2512 (6332 Metric) Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element

Download PA2512FKF7W0U5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PA2512FKF7W0U5E - Yageo Group - PCB symbol
click to zoom

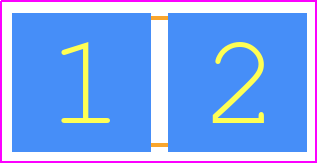

PCB Footprints
PA2512FKF7W0U5E - Yageo Group PCB footprint - Resistor Chip - Resistor Chip - 2512 (6332 Metric)_2026-ren1
click to zoom
3D Models
PA2512FKF7W0U5E - Yageo Group - 3D model - Resistor Chip - 2512 (6332 Metric)_2026-ren1
click to zoom

PA2512FKF7W0U5E Details

  • Manufacturer Part Number:

    PA2512FKF7W0U5E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    7.25

  • Additional Feature:

    ANTI-SULFUR

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.63 mm

  • Package Length:

    6.35 mm

  • Package Style:

    SMT

  • Package Width:

    3.18 mm

  • Packing Method:

    TR, Embossed Plastic, 7 Inch

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.0005 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL STRIP

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    0.0316 V

PA2512FKF7W0U5E Frequently Asked Questions (FAQs)

  • The recommended land pattern for PA2512FKF7W0U5E is a rectangular pad with a size of 1.3mm x 0.6mm, with a non-solder mask defined (NSMD) pad shape. This is to ensure proper soldering and to prevent solder bridging.
  • PA2512FKF7W0U5E has a maximum operating temperature of 150°C, making it suitable for most industrial and automotive applications. However, it's essential to consider the derating curve and ensure that the component does not exceed its maximum power rating at high temperatures.
  • Yes, PA2512FKF7W0U5E is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, it's crucial to follow the recommended soldering profile and ensure that the component is not exposed to excessive temperatures or thermal shock.
  • The typical tolerance for the resistance value of PA2512FKF7W0U5E is ±1%. This means that the actual resistance value may vary by up to 1% from the nominal value specified in the datasheet.
  • PA2512FKF7W0U5E is a general-purpose resistor suitable for most analog and digital circuits. While it can be used in high-frequency applications, its performance may degrade above 100 MHz due to parasitic inductance and capacitance. For high-frequency applications, it's recommended to use specialized resistors designed for high-frequency use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PA2512FKF7W0U5E Overview

Use the download button to access the PA2512FKF7W0U5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PA251, or try a keyword search, such as Metal Strip Resistor
