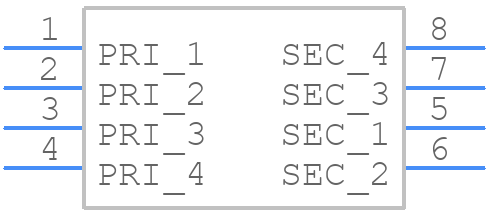

Symbol

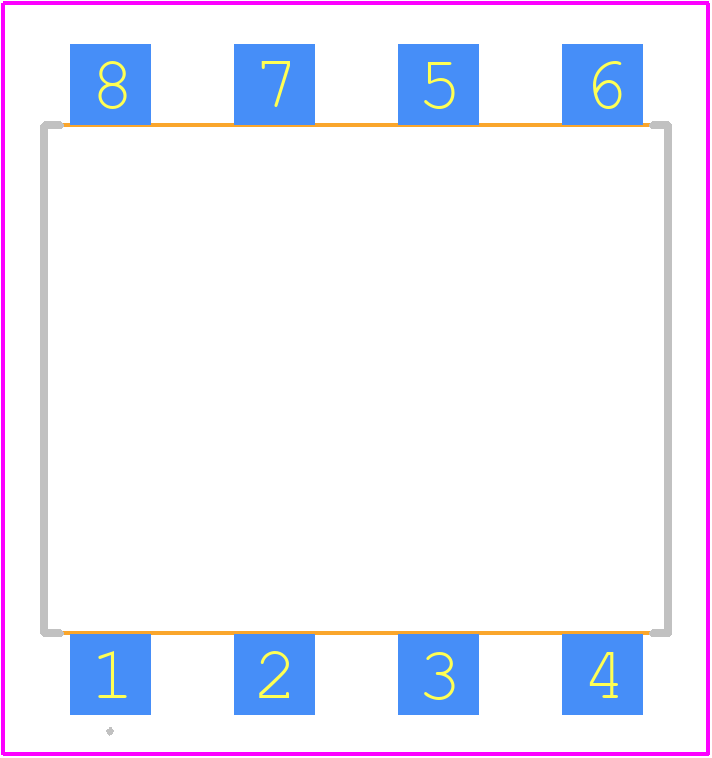

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PA3965.002NL
- Part Number PA3965.002NL
- Manufacturer Yageo Group
- Pin Count 8
- Part Category Transformer
- Package Category Other
- Footprint Name Other - PA3965.002NL-1
- Released Date Sep 2, 2022
- Last Modified Date Feb 4, 2026 2:20 PM UTC
- Pinout / Pin List Click Here (Member Only)
PA3965.002NL Details
-
Manufacturer Part Number:
PA3965.002NL
-
Manufacturer:
YAGEO Corporation
Trust Checks
Community Provided
System Verified
Community Approved
PA3965.002NL Overview
Use the download button to access the PA3965.002NL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PA396,
or try a keyword search, such as SMPS Transformers
