PA6383-ALD - COILCRAFT

Description: Push-Pull Transformers 5 V, 1.0 A, 1 MHz Push-Pull DC/DC Driver with Duty Cycle Control

Download PA6383-ALD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

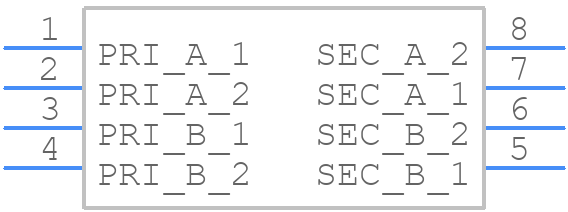

Symbol
PA6383-ALD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
PA6383-ALD - COILCRAFT PCB footprint - Other - Other - PA6383-ALD-1
click to zoom
3D Models
PA6383-ALD - COILCRAFT - 3D model - Other - PA6383-ALD-1
click to zoom

PA6383-ALD Details

  • Manufacturer Part Number:

    PA6383-ALD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.03

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Height:

    9.02 mm

  • Input Voltage-Nom:

    5 V

  • Length:

    10.92 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    5 W

  • Primary Inductance:

    29.7 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    8.6 mm

PA6383-ALD Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their application note AN-40, which can be found on their website. The land pattern is designed to ensure optimal performance and reliability of the inductor.
  • While the PA6383-ALD is rated for operation up to 125°C, it's essential to consider the derating curves provided in the datasheet to ensure the inductor's performance and reliability are not compromised at elevated temperatures.
  • To minimize the impact of mechanical stress, it's recommended to follow proper handling and mounting procedures, such as avoiding bending or flexing the leads, and using a sufficient amount of solder to secure the inductor to the PCB.
  • The maximum current rating for PA6383-ALD is dependent on the operating frequency and temperature. Refer to the datasheet's current rating vs. frequency curves to determine the maximum current for your specific application.
  • While the PA6383-ALD is designed to be robust, it's still important to consider the potential effects of vibration on the inductor's performance and reliability. Coilcraft recommends following their application note AN-41 for guidance on designing for vibration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PA6383-ALD Overview

Use the download button to access the PA6383-ALD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PA638, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
