Coilcraft provides a recommended PCB land pattern in their application note AN-40, which can be found on their website. The land pattern is designed to ensure optimal performance and reliability of the inductor.
Coilcraft recommends following the standard reflow soldering profile for the PA6549-ALB inductor, with a peak temperature of 260°C (500°F) for a maximum of 30 seconds. It's also important to ensure that the inductor is properly aligned on the PCB and that the solder paste is evenly distributed to prevent voids or bridges.
The maximum current rating for the PA6549-ALB inductor is not explicitly stated in the datasheet, but it can be calculated based on the inductor's saturation current and the application's specific requirements. Coilcraft recommends consulting with their application engineers for guidance on selecting the appropriate inductor for a specific application.
Yes, the PA6549-ALB inductor is designed for high-frequency applications up to 1 GHz. Its low equivalent series resistance (ESR) and high self-resonant frequency (SRF) make it suitable for use in high-frequency circuits such as filters, antennas, and impedance matching networks.
The PA6549-ALB inductor is rated for operation up to 125°C (257°F), but it can be used in higher temperature environments with derating. Coilcraft recommends consulting with their application engineers to determine the appropriate derating factors for a specific application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PA6549-ALB Overview

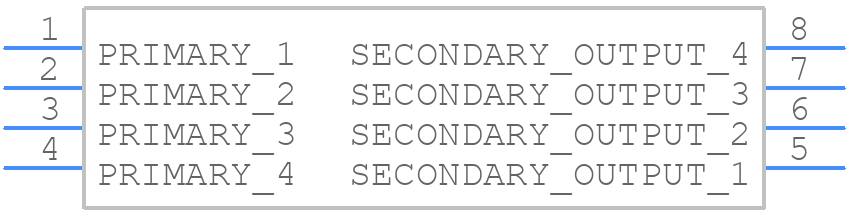

Use the download button to access the PA6549-ALB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PA654,
or try a keyword search, such as Power/Mains Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
