Coilcraft recommends a land pattern with a minimum pad size of 1.3 mm x 1.3 mm and a non-solder mask defined (NSMD) pad shape to ensure reliable assembly and minimize thermal resistance.
While PA6549-ALD is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature environments. Consult with Coilcraft's application engineers for specific guidance.
To minimize layout-related effects, keep the inductor at least 1.5 mm away from other components, use a solid ground plane, and avoid routing high-frequency signals near the inductor. Consult Coilcraft's application notes for more detailed guidance.
The maximum current rating for PA6549-ALD is 4.5 A, but this value can be affected by the operating temperature, frequency, and PCB layout. Always check the inductor's temperature rise and derating curves to ensure reliable operation.
Yes, PA6549-ALD is suitable for switching regulator applications due to its low core loss and high saturation current. However, ensure that the inductor is properly sized for the specific application, and consider the effects of ripple current and core loss on the inductor's performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PA6549-ALD Overview

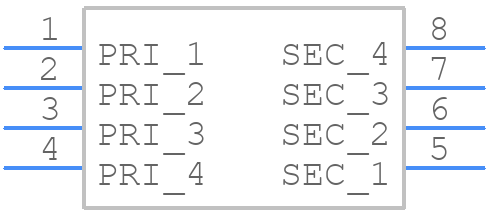

Use the download button to access the PA6549-ALD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PA654,
or try a keyword search, such as Power/Mains Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
