PA6582-AL - COILCRAFT

Description: Flyback Transformer, For TI 30 Watt PoE PSE, PMP20588, isolation, ferrite core, SMT, RoHS

Download PA6582-AL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

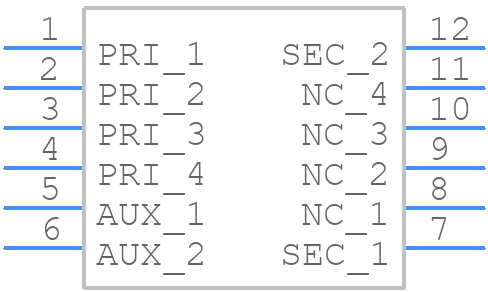

PA6582-AL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

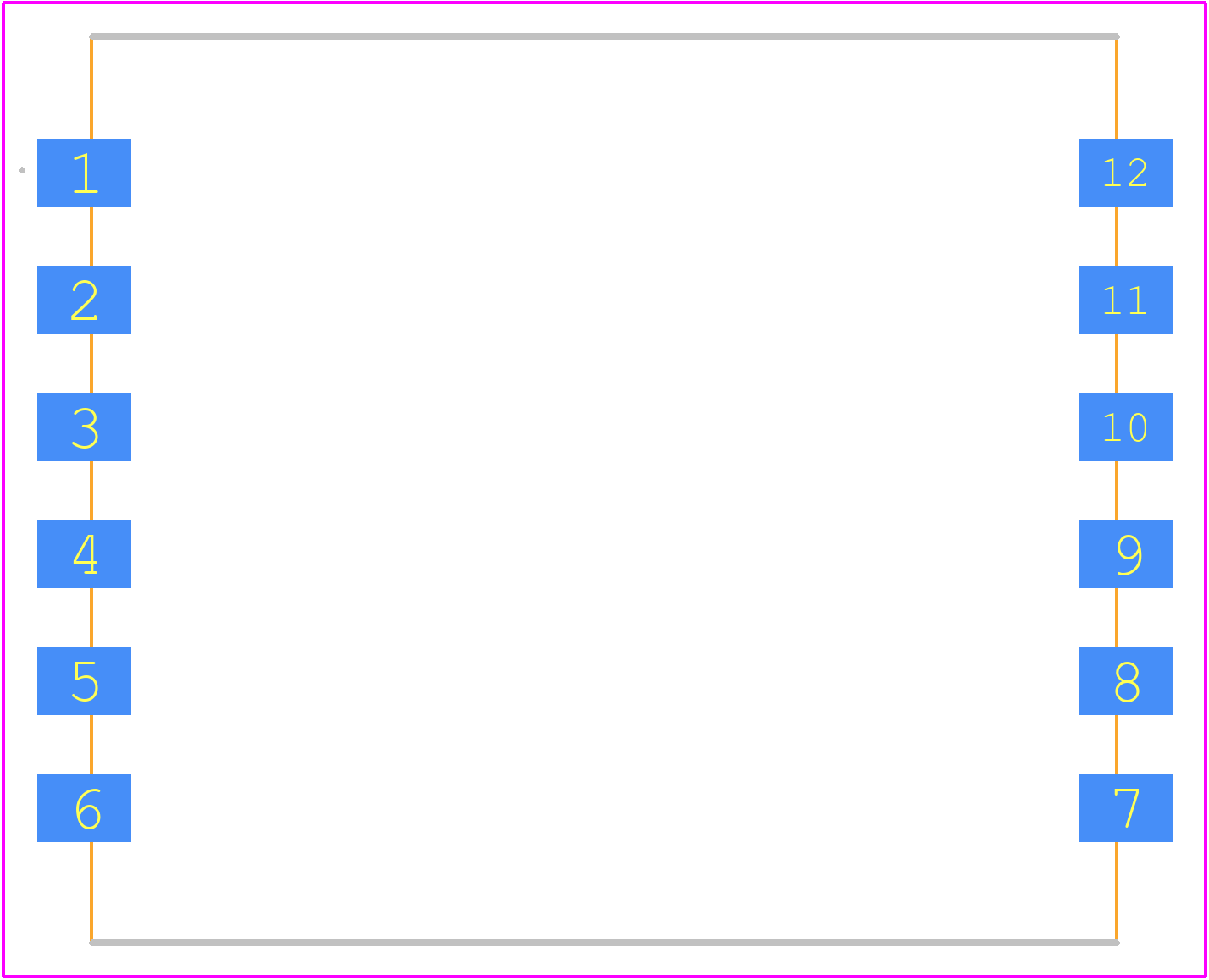

PA6582-AL - COILCRAFT PCB footprint - Other - Other - PA6582-AL-1
click to zoom
3D Models
PA6582-AL - COILCRAFT - 3D model - Other - PA6582-AL-1
click to zoom

PA6582-AL Details

  • Manufacturer Part Number:

    PA6582-AL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.66

  • Additional Feature:

    HEIGHT AND LENGTH DIMENSION INCLUDES TERMINAL ALSO

  • Height:

    14 mm

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    6 V

  • Length:

    33.02 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    54 V

  • Packing Method:

    TRAY

  • Power Rating:

    30 W

  • Primary Inductance:

    9 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    26.75 mm

PA6582-AL Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their documentation, which includes a suggested pad layout and dimensions to ensure proper mounting and soldering of the inductor.
  • The PA6582-AL's inductance and Q values can vary with temperature. To minimize these effects, ensure proper thermal management, use a thermally stable PCB material, and consider using a temperature-compensated inductor if necessary.
  • The maximum current rating for the PA6582-AL is not explicitly stated in the datasheet. However, Coilcraft provides a current rating calculator on their website, which can be used to determine the maximum current handling capability based on the specific application's requirements.
  • Yes, the PA6582-AL is suitable for high-frequency applications. However, it's essential to consider the inductor's self-resonant frequency (SRF) and ensure that it does not coincide with the operating frequency of your application.
  • Follow proper soldering techniques, such as using a soldering iron with a temperature range of 250°C to 270°C, and ensure the PCB is clean and free of oxidation. Apply a small amount of solder paste to the pads, and use a soldering iron to reflow the solder.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PA6582-AL Overview

Use the download button to access the PA6582-AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PA658, or try a keyword search, such as SMPS Transformers
