PA6605-AL - COILCRAFT

PA6605-AL Frequently Asked Questions (FAQs)

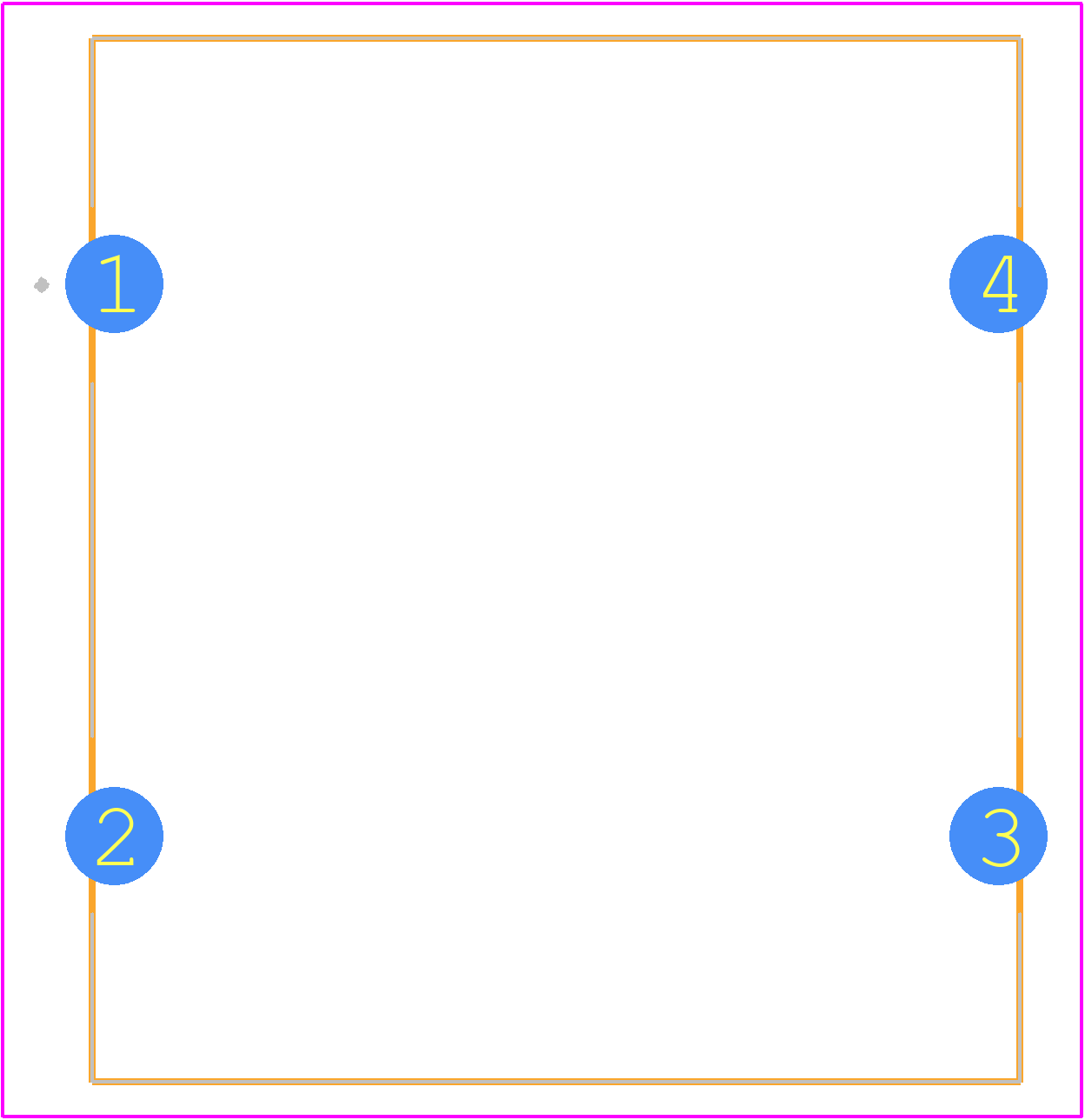

• What is the recommended PCB land pattern for the PA6605-AL?
  Coilcraft provides a recommended PCB land pattern in their documentation, which includes a rectangular pad with a size of 4.5 mm x 2.5 mm, and a thermal pad with a size of 2.5 mm x 2.5 mm.
• How do I handle the PA6605-AL's sensitivity to moisture?
  The PA6605-AL is a molded inductor, which makes it sensitive to moisture. To handle this, it's recommended to follow proper storage and handling procedures, such as storing the components in a dry environment and avoiding exposure to high humidity or water.
• What is the maximum operating temperature range for the PA6605-AL?
  The PA6605-AL has an operating temperature range of -40°C to +125°C, but it's recommended to derate the current rating above 80°C to ensure reliable operation.
• Can I use the PA6605-AL in a high-vibration environment?
  The PA6605-AL is designed to withstand moderate vibration, but it's recommended to evaluate the component's performance in the specific vibration environment to ensure reliable operation.
• How do I ensure the PA6605-AL meets my application's electromagnetic interference (EMI) requirements?
  The PA6605-AL is designed to meet CISPR 25 Class 5 EMI requirements, but it's recommended to evaluate the component's performance in the specific application and environment to ensure compliance with EMI regulations.
