A good PCB layout for PAA140 involves keeping the input and output traces separate, using a ground plane, and placing the device close to the power source. Additionally, ensure that the PCB material has a high thermal conductivity to dissipate heat efficiently.
To select the correct fuse rating, consider the maximum current rating of your circuit, the voltage rating, and the fault current rating. You can use Littelfuse's fuse selection guide or consult with their technical support team for assistance.
The maximum operating temperature range for PAA140 is -40°C to 125°C. However, the device's performance and reliability may degrade if operated at extreme temperatures for extended periods.
Yes, PAA140 is designed for high-reliability and safety-critical applications. It meets various industry standards, such as AEC-Q200, and is suitable for use in automotive, industrial, and medical devices.
To ensure proper soldering, follow the recommended soldering profile, use a solder with a high melting point, and maintain a clean and dry PCB surface. Avoid applying excessive heat or force during the soldering process.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAA140 Overview

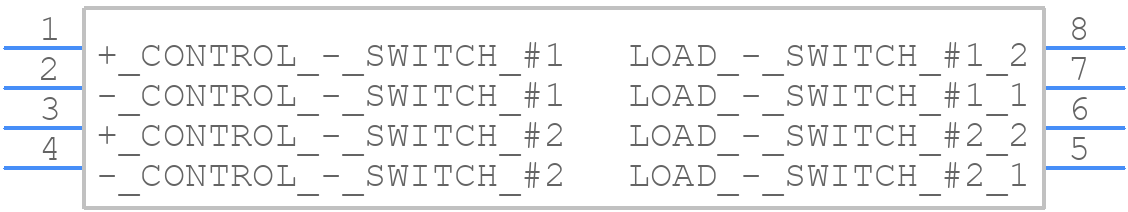

Use the download button to access the PAA140 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAA14,
or try a keyword search, such as Solid State Relays
