Part Image

PAA140PTR - LITTELFUSE

Description: Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)

Download PAA140PTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

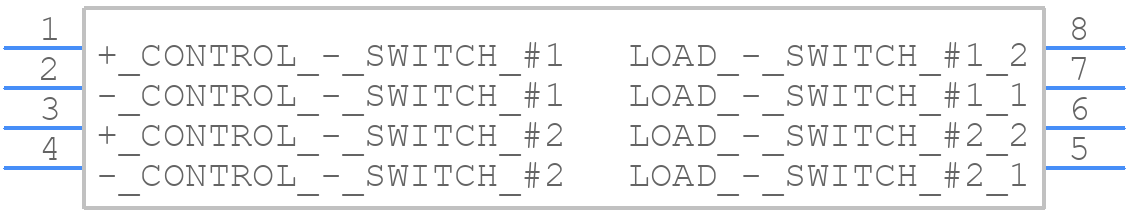

PAA140PTR - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
PAA140PTR - LITTELFUSE PCB footprint - Other - Other - 8-Pin SOIC (Flatpack)
click to zoom
3D Models
PAA140PTR - LITTELFUSE - 3D model - Other - 8-Pin SOIC (Flatpack)
click to zoom

PAA140PTR Details

  • Manufacturer Part Number:

    PAA140PTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.9

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Control Current:

    0.005 A

  • Control Voltage:

    0.9 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-state Resistance-Max:

    8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    2.159 mm

  • Overall Length:

    9.652 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Surface Mount:

    YES

PAA140PTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for PAA140PTR involves keeping the traces as short as possible, using a solid ground plane, and placing the device close to the power source to minimize inductance. Additionally, it's recommended to use a thermal relief pattern on the pads to ensure good thermal conduction.
  • PAA140PTR is designed to handle overvoltage conditions up to 40V. In the event of an overvoltage, the device will clamp the voltage to prevent damage to the internal components. However, it's still important to ensure that the device is operated within the recommended voltage range to prevent damage or degradation.
  • The maximum operating temperature range for PAA140PTR is -40°C to 150°C. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
  • Yes, PAA140PTR can be used in high-frequency applications up to 100 kHz. However, it's important to ensure that the device is properly decoupled and that the PCB layout is optimized for high-frequency operation.
  • Yes, PAA140PTR is compatible with lead-free soldering processes. The device is designed to meet the requirements of the RoHS directive and can be soldered using lead-free soldering techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PAA140PTR Overview

Use the download button to access the PAA140PTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAA14, or try a keyword search, such as Solid State Relays
