Technical Content
Part Image

PACSR24021S - Delta Electronics

Description: 24V Output AC/DC Converter, Module Package

Download PACSR24021S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

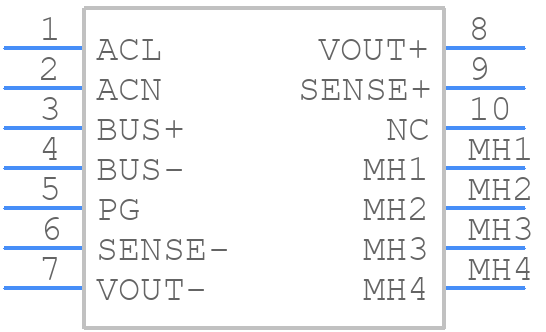

Symbol
PACSR24021S - Delta Electronics - PCB symbol
click to zoom

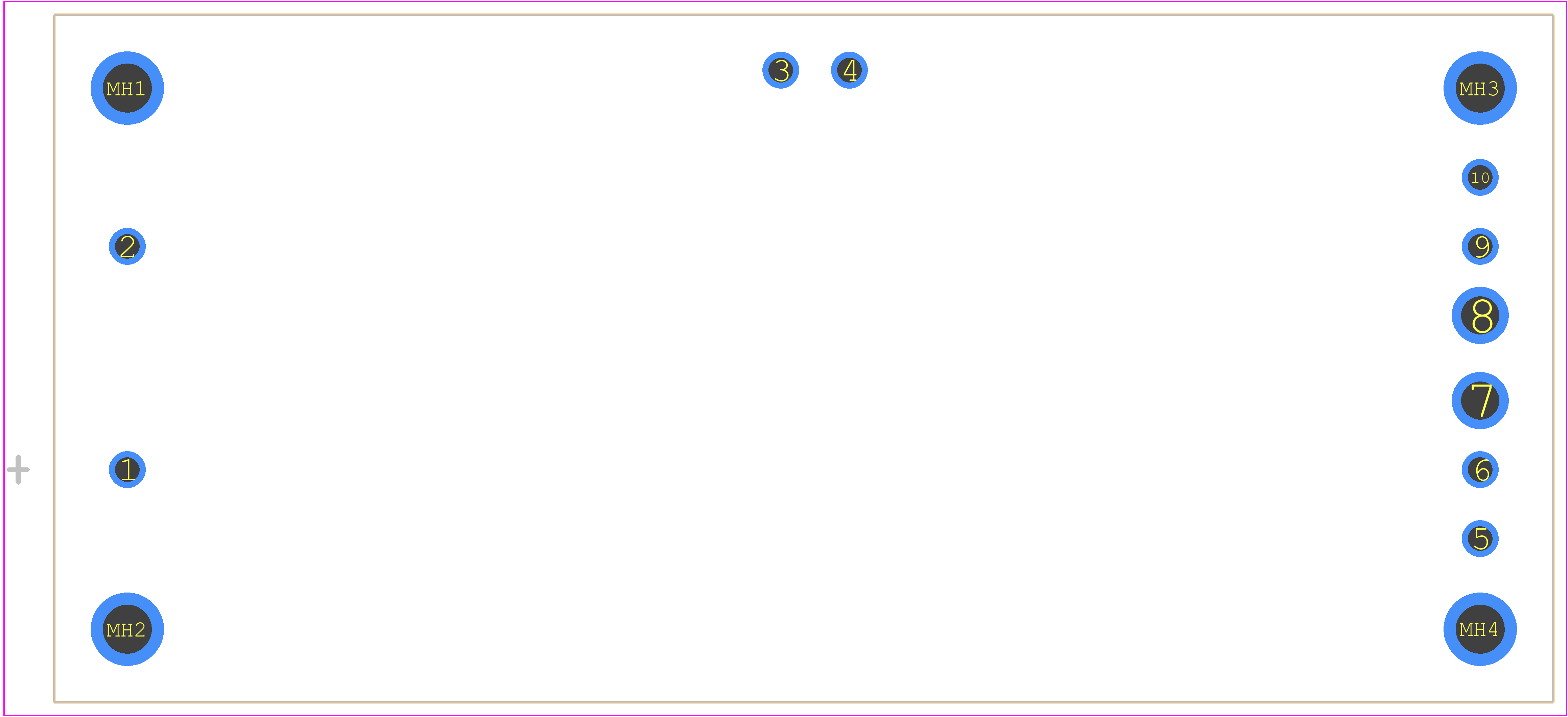

PCB Footprints
PACSR24021S - Delta Electronics PCB footprint - Other - Other - PACSR24021S-2
click to zoom
3D Models
PACSR24021S - Delta Electronics - 3D model - Other - PACSR24021S-2
click to zoom

PACSR24021S Details

  • Manufacturer Part Number:

    PACSR24021S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACAKGE-10

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    7.9

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    93.5%

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    110 V

  • JESD-30 Code:

    R-MXFM-P10

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Output Current-Max:

    21 A

  • Output Voltage-Max:

    23.6 V

  • Output Voltage-Min:

    23.6 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    METAL

  • Package Code:

    XFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

  • Ripple Voltage (Main Out):

    0.35 Vrms

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    UNSPECIFIED

  • Total Power Output-Max:

    504 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    1.5 s

PACSR24021S Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to place thermal vias under the device to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, make sure to follow the recommended derating curves, and consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The recommended input capacitors are X-capacitors with a voltage rating of 250VAC or higher, and output capacitors with a voltage rating of 50VDC or higher, with a capacitance value of 10uF to 22uF.
  • To protect the device from overvoltage and undervoltage conditions, consider using a voltage supervisor or a power monitoring IC to detect and respond to abnormal voltage conditions.
  • The recommended fuse rating for overcurrent protection is 5A to 10A, depending on the specific application and maximum expected current.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PACSR24021S Overview

Use the download button to access the PACSR24021S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PACSR, or try a keyword search, such as Power Supply Modules
