Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The PAD001-T764117S is designed to provide high-frequency noise filtering and EMI suppression. The device's internal construction and materials are optimized to reduce electromagnetic interference and radio-frequency interference (RFI). However, additional shielding or filtering may be necessary depending on the specific application and environment.
While the datasheet specifies an operating temperature range of -40°C to +125°C, it's essential to note that the device's performance may degrade at extreme temperatures. It's recommended to consult with Bourns' application engineers or refer to their reliability reports for more information on temperature-related performance and reliability.
The PAD001-T764117S is designed to meet the requirements of various industries, including automotive and industrial. However, it's crucial to evaluate the device's performance in your specific application and environment. Bourns provides vibration and shock testing data in their reliability reports, which can help you determine the device's suitability for your use case.
Yes, it's essential to handle and store the PAD001-T764117S in accordance with Bourns' recommended guidelines to prevent damage and ensure reliability. This includes avoiding excessive mechanical stress, using anti-static packaging and handling materials, and storing the devices in a clean, dry environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAD001-T764117S Overview

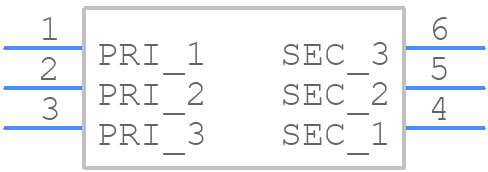

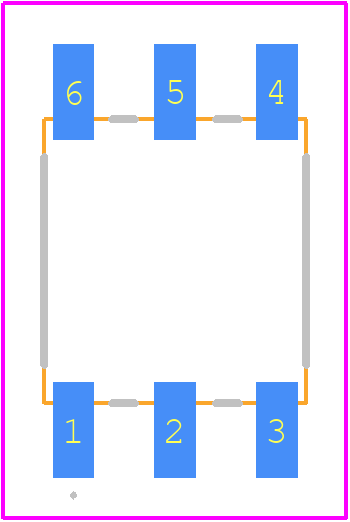

Use the download button to access the PAD001-T764117S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAD00,
or try a keyword search, such as SMPS Transformers
