A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure proper power-up and configuration, follow the recommended power-up sequence, and make sure the EN pin is high during power-up. Also, ensure the input voltage is within the recommended range, and the output capacitors are properly sized.
Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Also, avoid bending or flexing the leads, and use a soldering iron with a temperature-controlled tip to prevent overheating.
To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify the PCB layout and component values meet the recommended specifications. Use an oscilloscope to check for oscillations or noise on the output. If issues persist, consult the datasheet and application notes, or contact Diodes Incorporated support.
The device has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use a heat sink if necessary. Monitor the device temperature, and reduce the output current or input voltage if the temperature exceeds 120°C. Also, ensure the PCB is designed for good thermal conductivity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM2301CAAB120 Overview

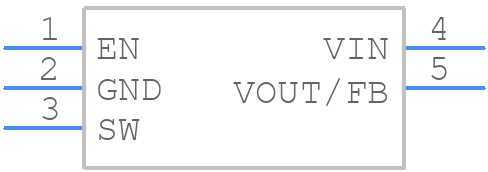

Use the download button to access the PAM2301CAAB120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM23,
or try a keyword search, such as Switching Regulator or Controllers
