A good PCB layout for the PAM2305AABADJ should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces under the device, and use thermal vias to dissipate heat efficiently.
To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and low ESR. Also, minimize the distance between the output capacitor and the device, and use a low-impedance output capacitor to reduce output voltage ripple.
The PAM2305AABADJ is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to derate the device's power dissipation according to the ambient temperature. Consult the datasheet for thermal derating curves.
While the PAM2305AABADJ is a high-quality device, it may not meet the specific requirements for high-reliability or automotive applications. Consult Diodes Incorporated for availability of automotive-grade or high-reliability versions of the device, or consider alternative devices specifically designed for these applications.
The PAM2305AABADJ has built-in overcurrent protection (OCP) and short-circuit protection (SCP). However, it's still recommended to add external protection components, such as fuses or PTC thermistors, to prevent damage from excessive current or voltage surges.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM2305AABADJ Overview

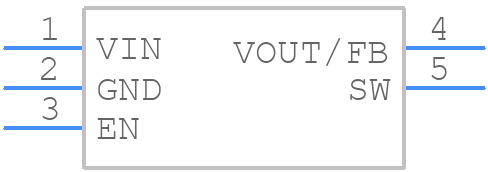

Use the download button to access the PAM2305AABADJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM23,
or try a keyword search, such as Switching Regulator or Controllers
