Diodes Incorporated provides a recommended PCB layout in their application note AN-114, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Consult the datasheet and application notes for more specific guidance.
The PAM2305CGF330 is rated for operation up to 85°C ambient temperature, but derating is required for temperatures above 70°C. Consult the datasheet for thermal derating curves and guidelines for reliable operation.
To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering components as necessary, and consider using a common-mode choke or ferrite bead on the input lines. Consult the datasheet and application notes for more specific guidance.
The recommended output capacitor value is typically between 1uF to 10uF, and the type should be a low-ESR ceramic or electrolytic capacitor. The specific value and type depend on the output voltage, output current, and ripple requirements. Consult the datasheet and application notes for more specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM2305CGF330 Overview

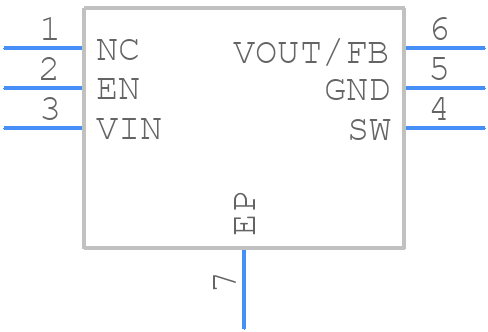

Use the download button to access the PAM2305CGF330 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM23,
or try a keyword search, such as Switching Regulator or Controllers
