The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently and reduce thermal resistance.
To ensure stable output voltage regulation, it is recommended to use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF or higher). Additionally, the input capacitor should be placed close to the device and have a low ESR value as well.
Although the datasheet specifies a maximum input voltage of 5.5V, it is recommended to limit the input voltage to 5V or lower to ensure reliable operation and prevent damage to the device.
The power dissipation of the device can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. This calculation helps to determine the required thermal management and heat sinking for the device.
The recommended input capacitor value is 1uF to 10uF, and the type should be a low-ESR ceramic capacitor (e.g., X5R or X7R) or a film capacitor. The input capacitor helps to filter out noise and ripple on the input voltage and ensures stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM2308BYMAA Overview

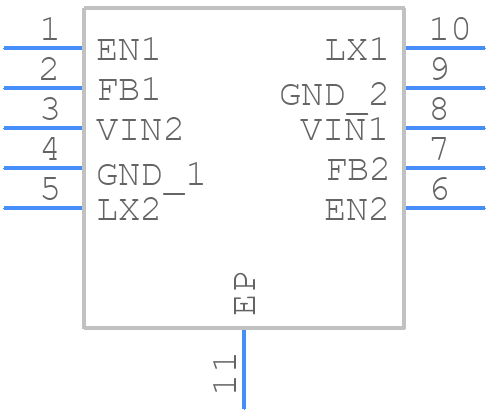

Use the download button to access the PAM2308BYMAA schematic symbol, PCB footprint, and 3D model.
