A good PCB layout for the PAM2319AYAA involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R).
The PAM2319AYAA is rated for operation from -40°C to 85°C. However, the device may still function outside this range, but its performance and reliability may be affected.
Yes, the PAM2319AYAA is suitable for use in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and the components are properly soldered to prevent mechanical stress and vibration-induced failures.
To troubleshoot issues with the PAM2319AYAA, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Diodes Incorporated's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM2319AYAA Overview

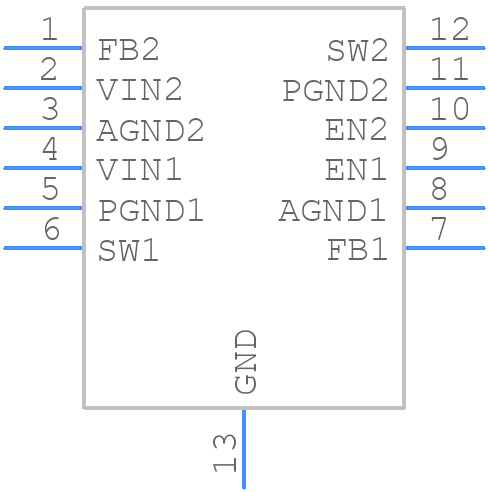

Use the download button to access the PAM2319AYAA schematic symbol, PCB footprint, and 3D model.
