A good PCB layout for the PAM2320BECADJR involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type. It's also important to minimize the loop area of the feedback network and keep the feedback resistors close to the device.
The PAM2320BECADJR is rated for operation from -40°C to 85°C. However, the device's performance may degrade at higher temperatures, so it's recommended to keep the ambient temperature below 70°C for optimal performance.
Yes, the PAM2320BECADJR is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's still important to follow proper design and manufacturing practices to ensure the reliability of the final product.
To troubleshoot issues with the PAM2320BECADJR, start by checking the input voltage and current, as well as the output voltage and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or other anomalies in the output waveform. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM2320BECADJR Overview

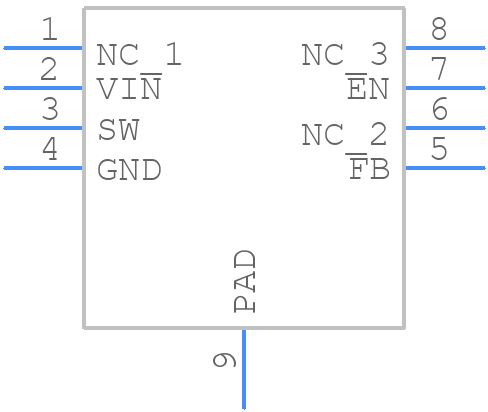

Use the download button to access the PAM2320BECADJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM23,
or try a keyword search, such as Switching Regulator or Controllers
