PAM2322AGEAR - Diodes Incorporated

Description: Schaltspannungsregler PAM2322 DCDC Buck Converter GEAR

Download PAM2322AGEAR Model

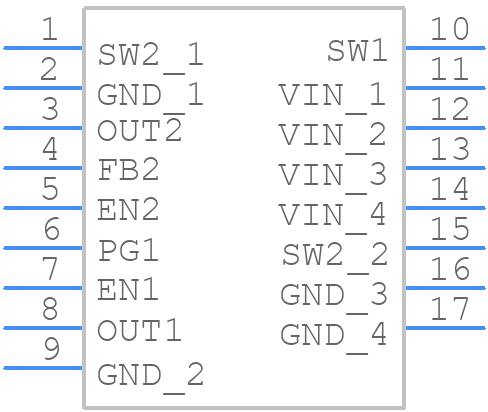

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PAM2322AGEAR - Diodes Incorporated PCB footprint - Other - Other - W-FLGA2520-17
click to zoom
3D Models
PAM2322AGEAR - Diodes Incorporated  - 3D model - Other - W-FLGA2520-17
click to zoom

PAM2322AGEAR Details

  • Manufacturer Part Number:

    PAM2322AGEAR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FLGA-17

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-XBGA-N17

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.9 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

PAM2322AGEAR Frequently Asked Questions (FAQs)

  • Diodes Incorporated provides a recommended PCB layout in the application note AN-114, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • To ensure output voltage stability, it is recommended to use a minimum output capacitance of 10uF, and to follow the recommended PCB layout and component selection guidelines. Additionally, the output voltage can be further stabilized by adding a small ceramic capacitor (e.g. 1uF) in parallel with the output capacitor.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it is recommended to limit the input voltage to 5V to ensure reliable operation and to prevent damage to the device.
  • Yes, PAM2322AGEAR is rated for operation up to 125°C, but it is recommended to derate the output current and to ensure proper thermal management to prevent overheating. A thermal pad is available on the package to help dissipate heat.
  • The power dissipation of PAM2322AGEAR can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The thermal resistance (RθJA) of the package should also be considered to ensure proper thermal management.
