Description:Up to 95% Efficiency
• True Output Disconnect
• Inrush Current Limiting When Power On
• Output Current up to 1000mA at VIN = 3V and VOUT = 5.0V
• Fixed Frequency Operation Up to 1MHz
• 0.9V to 4.75V Input Range
• 2.5V to 5.0V Adjustable Output Voltage
• Guaranteed 1.0V Start-Up
• Programmable Current Limit
• Internal Soft-Start
• Internal Compensation
• Pulse Sipping Mode at Light Load Operation
• Hiccup Mode Short Protection
• Over Voltage Protection
• Over Temperature Protection
• <1µA Shut
A good PCB layout for PAM2401YPADJ involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type. Additionally, minimize the distance between the device and the output capacitor.
The maximum ambient temperature range for the PAM2401YPADJ is -40°C to +85°C. However, the device can operate at a junction temperature of up to 150°C.
Yes, the PAM2401YPADJ is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is essential to follow the recommended operating conditions and PCB layout guidelines to ensure optimal performance.
To troubleshoot issues with the PAM2401YPADJ, start by checking the input voltage and output voltage levels. Ensure that the input voltage is within the recommended range and the output voltage is within the specified tolerance. Also, check the PCB layout for any errors or omissions. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM2401YPADJ Overview

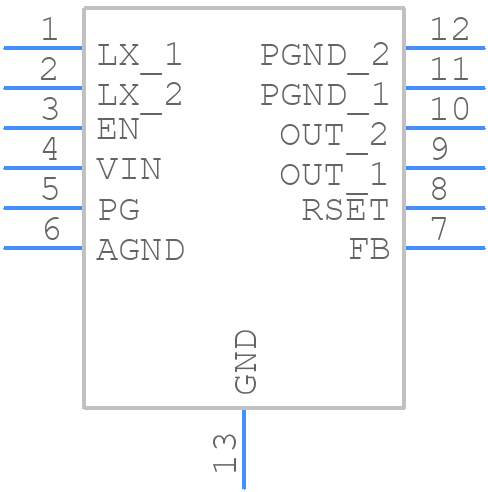

Use the download button to access the PAM2401YPADJ schematic symbol, PCB footprint, and 3D model.
