A good PCB layout for the PAM2422AECADJR involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value to maintain stability.
The PAM2422AECADJR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. It's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
Yes, the PAM2422AECADJR is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure compliance with the relevant standards.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the PCB layout and component values are correct. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM2422AECADJR Overview

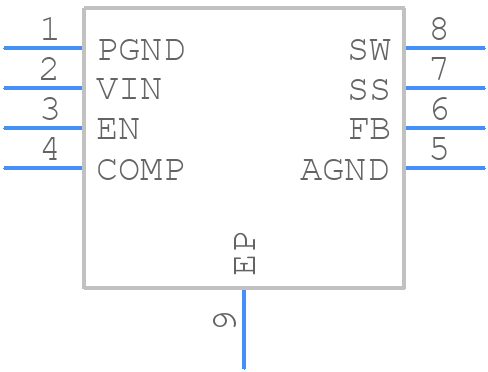

Use the download button to access the PAM2422AECADJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM24,
or try a keyword search, such as Switching Regulator or Controllers
