PAM2863ECR - Diodes Incorporated

Description: Step-down LED Driver 1MHz 40V 2A SOP-8EP DiodesZetex PAM2863ECR LED Driver IC, 4.5 → 40 V dc 2A 8-Pin SOP

Download PAM2863ECR Model

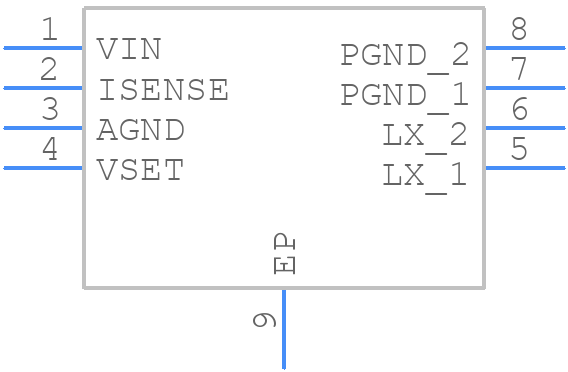

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PAM2863ECR - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8EP
click to zoom
3D Models
PAM2863ECR - Diodes Incorporated  - 3D model - Small Outline Packages - SO-8EP
click to zoom

PAM2863ECR Details

  • Manufacturer Part Number:

    PAM2863ECR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    5

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    16 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

PAM2863ECR Frequently Asked Questions (FAQs)

  • A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for optimal thermal performance.
  • Ensure the input voltage is within the recommended range of 2.7V to 5.5V, and the output current does not exceed 3A. Also, ensure the device is operated within the recommended ambient temperature range of -40°C to 85°C.
  • A 10uF ceramic capacitor with an X5R or X7R dielectric is recommended for optimal performance. The capacitor should be placed as close to the VIN pin as possible.
  • Use a shielded inductor, keep the layout compact, and minimize the loop area of the power traces to reduce EMI. Also, ensure the device is placed away from sensitive analog circuits.
  • A 22uF ceramic capacitor with an X5R or X7R dielectric is recommended for optimal performance. The capacitor should be placed as close to the VOUT pin as possible.
