PAM8008DR - Diodes Incorporated

Description: DiodesZetex PAM8008DR Audio Amplifier, Class-D Stereo, 16-Pin SOP

Download PAM8008DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

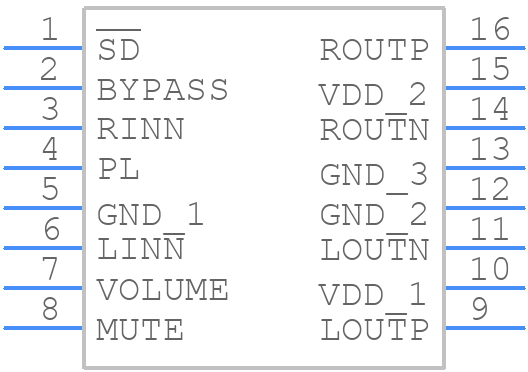

PAM8008DR - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PAM8008DR - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-16
click to zoom
3D Models
PAM8008DR - Diodes Incorporated - 3D model - Small Outline Packages - SO-16
click to zoom

PAM8008DR Details

  • Manufacturer Part Number:

    PAM8008DR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

PAM8008DR Frequently Asked Questions (FAQs)

  • A good PCB layout for the PAM8008DR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended PCB layout, use a low-ESR output capacitor, and add a 10nF-100nF capacitor between the VIN pin and GND. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limit.
  • The PAM8008DR can handle input voltages up to 18V, but it's recommended to keep the input voltage between 4.5V and 15V for optimal performance and to prevent damage to the device.
  • The PAM8008DR is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to use a heat sink or a thermal pad to keep the device temperature below 100°C for optimal performance and reliability.
  • The output voltage of the PAM8008DR is determined by the resistive divider network connected to the FB pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PAM8008DR Overview

Use the download button to access the PAM8008DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM80, or try a keyword search, such as Audio Control ICs
