PAM8603MDER - Diodes Incorporated

Description: Audio Amplifiers 3W STEREO FILTERLESS CLASS-D AUDIO AMP

Download PAM8603MDER Model

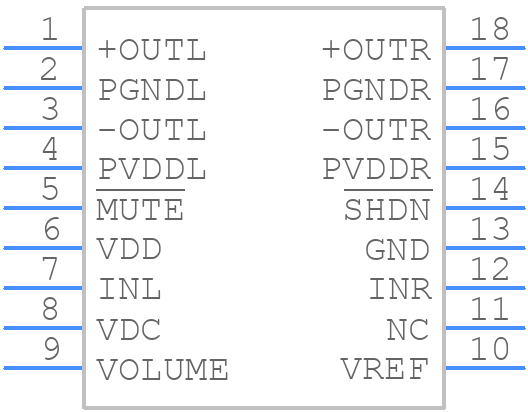

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PAM8603MDER - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SOP-18
click to zoom
3D Models
PAM8603MDER - Diodes Incorporated  - 3D model - Small Outline Packages - SOP-18
click to zoom

PAM8603MDER Details

  • Manufacturer Part Number:

    PAM8603MDER

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

PAM8603MDER Frequently Asked Questions (FAQs)

  • A good PCB layout for the PAM8603MDER involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are properly selected and placed, and that the device is operated within its recommended operating conditions.
  • The maximum power dissipation of the PAM8603MDER is dependent on the operating conditions and the thermal resistance of the PCB. However, as a general guideline, the device can dissipate up to 2.5W of power. It's essential to perform thermal calculations and ensure proper heat sinking to prevent overheating.
  • The PAM8603MDER is rated for operation up to 85°C, but it's essential to derate the device's power dissipation and ensure proper heat sinking to prevent overheating. Additionally, the device's performance may degrade at high temperatures, so it's crucial to evaluate its performance under the specific operating conditions.
  • To troubleshoot issues with the PAM8603MDER, start by verifying the input and output voltages, and checking for any signs of overheating. Use an oscilloscope to examine the output waveform and look for any signs of oscillation or instability. Check the PCB layout and component values to ensure they match the recommended values, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PAM8603MDER Overview

Use the download button to access the PAM8603MDER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM86, or try a keyword search, such as Audio Control ICs
