A good PCB layout for optimal thermal performance involves placing the PAM8610TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure the device operates within its specified temperature range.
The gain setting of the PAM8610TR depends on the specific application and the desired output power. A good starting point is to use the recommended gain setting in the datasheet, and then adjust it based on the output power and distortion requirements of your application. You may need to experiment with different gain settings to find the optimal value for your specific use case.
The maximum power supply voltage for the PAM8610TR is 15V, but it's recommended to operate the device at a voltage between 9V and 13.2V for optimal performance and reliability. Operating the device at higher voltages may reduce its lifespan or cause it to malfunction.
To protect the PAM8610TR from overvoltage and undervoltage conditions, you can use voltage regulators, such as the NCP1117 or the TLV703, to regulate the power supply voltage. You can also add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device in case of voltage fluctuations.
The recommended input capacitor value for the PAM8610TR is 10uF to 22uF, with a voltage rating of at least 16V. The input capacitor helps to filter out noise and ripple in the power supply, and ensures stable operation of the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM8610TR Overview

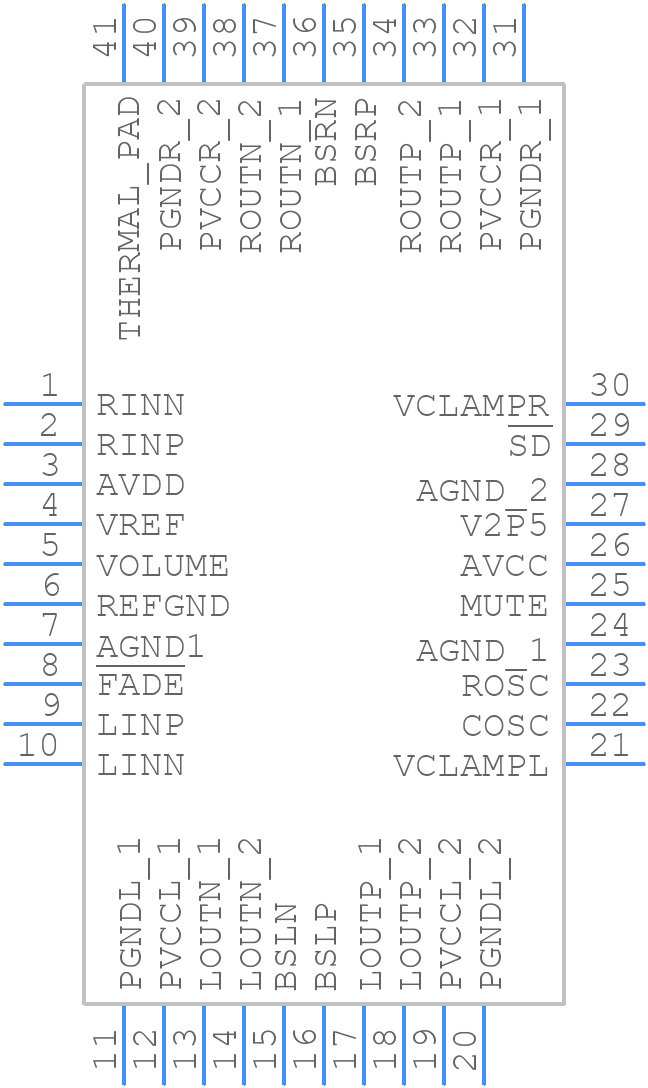

Use the download button to access the PAM8610TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM86,
or try a keyword search, such as Audio Control ICs
