TDK recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip line design for the RF signal traces. The datasheet provides a recommended PCB layout, but it's essential to follow good RF design practices to minimize losses and ensure optimal performance.
The PAN4820 requires a bias voltage of 3.3V or 5V, and a bias current of 10mA to 20mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is within the recommended range. Additionally, follow the recommended bias circuit configuration in the datasheet to ensure proper operation.
The PAN4820 is designed to handle a maximum input power of +20dBm (100mW). Exceeding this power limit may cause damage to the device or affect its performance. Ensure that the input power is within the recommended range to ensure reliable operation.
To troubleshoot issues with the PAN4820, start by verifying the PCB layout and ensuring that it follows good RF design practices. Check the bias voltage and current, and ensure that they are within the recommended range. Use a spectrum analyzer to measure the input and output signals, and check for any signs of oscillation or instability. If issues persist, consult the datasheet and application notes for further guidance.
The PAN4820 is rated for operation up to 85°C, but its performance may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, ensure that you follow proper thermal management practices, such as using a heat sink or thermal interface material. Consult the datasheet and application notes for further guidance on high-temperature operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAN4820 Overview

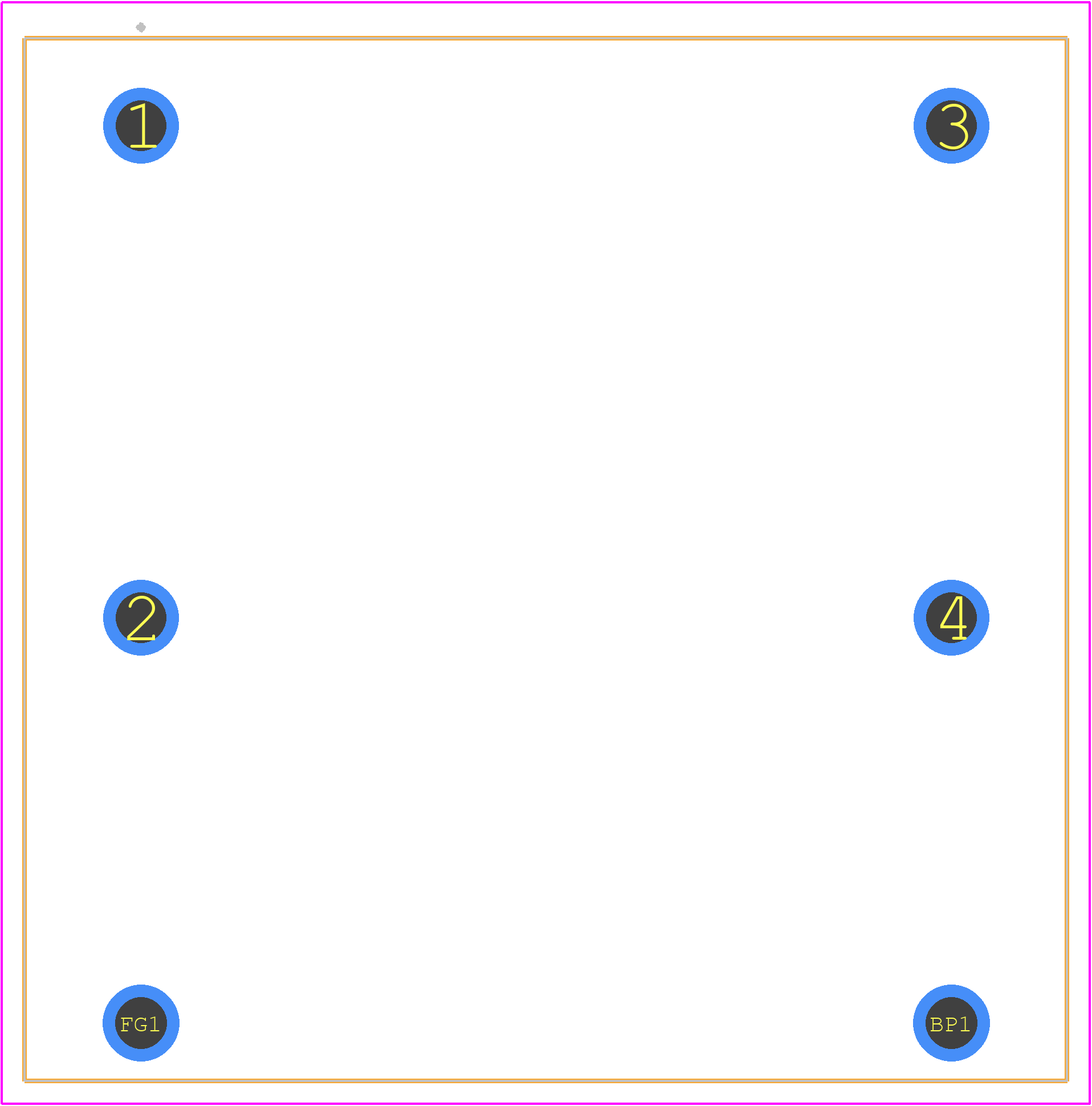

Use the download button to access the PAN4820 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAN48,
or try a keyword search, such as Telecom Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
