PAT-4+ - Mini-Circuits

Description: Attenuators 4 dB SMT Fixed Attenuator, DC - 7000 MHz, 50ohm

Download PAT-4+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

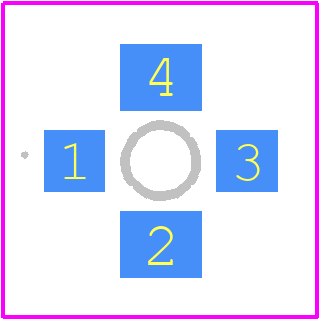

PAT-4+ - Mini-Circuits PCB footprint - Other - Other - PAT-4+-2
click to zoom

PAT-4+ Details

  • Manufacturer Part Number:

    PAT-4+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Attenuation-Nom:

    4 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    7000 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    SL,4LEAD,.073CIRC

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.4

PAT-4+ Frequently Asked Questions (FAQs)

  • The maximum power handling of PAT-4+ is 2W, but it's recommended to derate the power to 1W for continuous operation to ensure reliability and prevent overheating.
  • Yes, PAT-4+ can be used as a 1:4 power divider, but the phase balance and amplitude imbalance may not be as good as a dedicated 1:4 power divider. The phase balance is typically around ±10° and amplitude imbalance is around ±1.5dB.
  • The operating temperature range of PAT-4+ is -40°C to +85°C, but the device is typically tested and characterized at room temperature (25°C).
  • PAT-4+ is a commercial-grade component and may not meet the requirements for high-reliability or space applications. Mini-Circuits offers other products that are specifically designed and qualified for these types of applications.
  • The typical VSWR of PAT-4+ is around 1.2:1, but it can vary depending on the frequency and termination impedance.
