PAT0816-C-3DB-T5 - Susumu

Description: Attenuators Chip Attenuator, 3dB, 50O, 64mW, 0603 size, DC to 10GHz

Download PAT0816-C-3DB-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

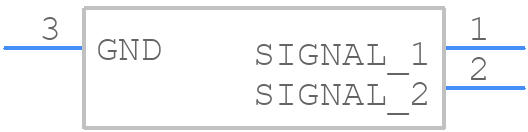

PAT0816-C-3DB-T5 - Susumu - PCB symbol
click to zoom
PCB Footprints
PAT0816-C-3DB-T5 - Susumu PCB footprint - Other - Other - PAT0816-C-3DB-T5-1
click to zoom
3D Models
PAT0816-C-3DB-T5 - Susumu - 3D model - Other - PAT0816-C-3DB-T5-1
click to zoom

PAT0816-C-3DB-T5 Details

  • Manufacturer Part Number:

    PAT0816-C-3DB-T5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-3

  • Country Of Origin:

    Japan

  • Manufacturer:

    Susumu Co Ltd

  • YTEOL:

    7

  • Attenuation-Nom:

    3 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    17.99 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    10000 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Terminal Finish:

    MATTE TIN

  • VSWR-Max:

    1.5

PAT0816-C-3DB-T5 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the PAT0816-C-3DB-T5 is a rectangular pad with a size of 1.2mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, the PAT0816-C-3DB-T5 is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the operating temperature range should be derated according to the power dissipation and thermal resistance of the component.
  • The PAT0816-C-3DB-T5 is a sensitive component and requires careful handling during assembly and rework. It is recommended to use a vacuum pickup tool or tweezers to handle the component, and to avoid touching the component leads or body to prevent damage or contamination.
  • The PAT0816-C-3DB-T5 has a moisture sensitivity level (MSL) of 3, which means it can be exposed to a relative humidity of 60% or less at 30°C for up to 168 hours without damage.
  • Yes, the PAT0816-C-3DB-T5 is suitable for high-frequency applications up to 1 GHz, due to its low equivalent series resistance (ESR) and high self-resonant frequency.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PAT0816-C-3DB-T5 Overview

Use the download button to access the PAT0816-C-3DB-T5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAT08, or try a keyword search, such as RF/Microwave Attenuators
