Technical Content
Part Image

PBC10SBAN - Sullins

Description: CONN HEADER R/A 10POS 2.54MM

Download PBC10SBAN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PBC10SBAN - Sullins - PCB symbol
click to zoom

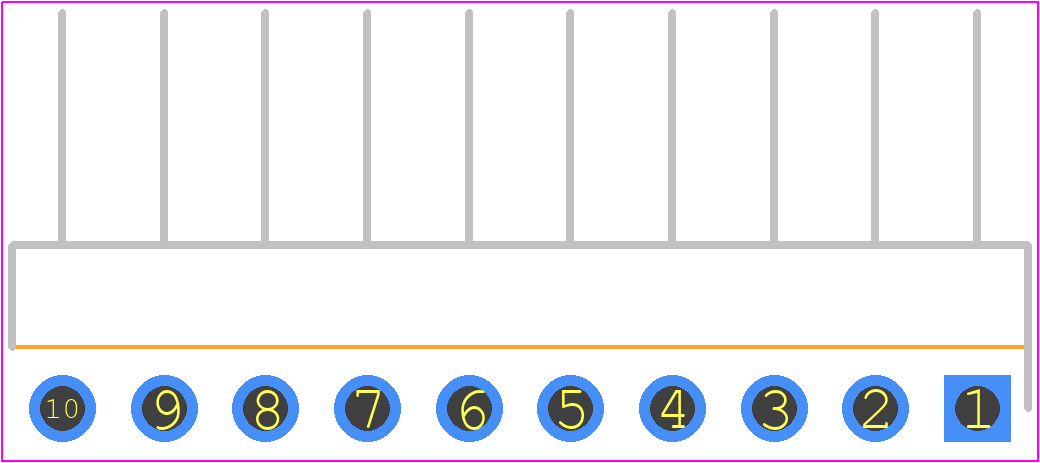

PCB Footprints
PBC10SBAN - Sullins PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - PBC10SBAN
click to zoom
3D Models
PBC10SBAN - Sullins - 3D model - Header, Unshrouded - Right Angle PTH Pin - PBC10SBAN
click to zoom

PBC10SBAN Details

  • Manufacturer Part Number:

    PBC10SBAN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.14 inch

  • Body Depth:

    0.16 inch

  • Body Length:

    1 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

PBC10SBAN Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the PBC10SBAN connector is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure proper mating and prevent damage to the connector.
  • Yes, the PBC10SBAN connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) in the frequency range of 10-2000 Hz.
  • The PBC10SBAN connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial automation to automotive and aerospace.
  • Yes, the PBC10SBAN connector is compatible with lead-free soldering processes. It meets the requirements of the RoHS (Restriction of Hazardous Substances) directive and can be soldered using lead-free solder alloys with a peak temperature of 260°C (500°F).
  • The PBC10SBAN connector has a mating cycle life of 500 cycles minimum. This means it can withstand repeated mating and unmating operations without compromising its performance or reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PBC10SBAN Overview

Use the download button to access the PBC10SBAN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBC10, or try a keyword search, such as Headers and Edge Type Connectors
