PBH2UEEKZXNAG1RBLK - E-Switch

Description: PUSHBUTTON, 0.4VA, 20VAC/VDC SPST, Off-(On), Panel Mount, Rear

Download PBH2UEEKZXNAG1RBLK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PBH2UEEKZXNAG1RBLK - E-Switch - PCB symbol
click to zoom
PCB Footprints

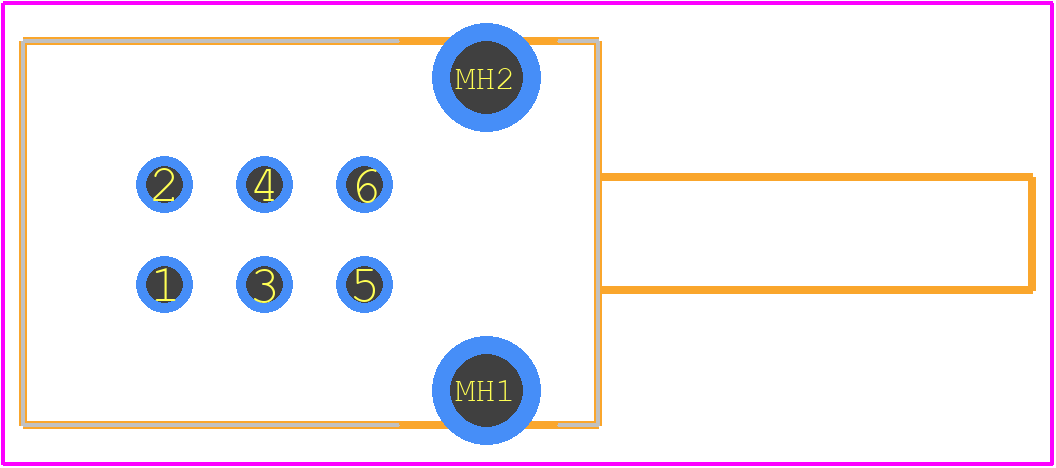

PBH2UEEKZXNAG1RBLK - E-Switch PCB footprint - Other - Other - PBH2UEEKZXNAG1RBLK-1
click to zoom
3D Models
PBH2UEEKZXNAG1RBLK - E-Switch - 3D model - Other - PBH2UEEKZXNAG1RBLK-1
click to zoom

PBH2UEEKZXNAG1RBLK Details

  • Manufacturer Part Number:

    PBH2UEEKZXNAG1RBLK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    E-Switch Inc

  • Manufacturer Series:

    PBH2UEEKZXNAG1RBLK

  • Switch Type:

    PUSHBUTTON SWITCH

  • Terminal Finish:

    Gold (Au) - with Silver (Ag) barrier

PBH2UEEKZXNAG1RBLK Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the PBH2UEEKZXNAG1RBLK is -20°C to 85°C.
  • To ensure proper mounting, use a soldering iron with a temperature of 250°C to 260°C, and apply a moderate amount of solder to the pins. Make sure the switch is aligned with the PCB pads and gently press it into place.
  • The maximum current rating for the PBH2UEEKZXNAG1RBLK is 50mA at 12VDC.
  • Use a soft-bristled brush to gently remove any debris or dust from the switch. Avoid using harsh chemicals or solvents, and instead, use a mild soap solution and distilled water to clean the switch.
  • The expected lifespan of the PBH2UEEKZXNAG1RBLK is approximately 100,000 cycles, depending on operating conditions and usage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PBH2UEEKZXNAG1RBLK Overview

Use the download button to access the PBH2UEEKZXNAG1RBLK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBH2U, or try a keyword search, such as Pushbutton Switches
