PBH6UEEKZXNAGX - E-Switch

PBH6UEEKZXNAGX Details

• Manufacturer Part Number:

  PBH6UEEKZXNAGX

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.33

• Manufacturer:

  E-Switch Inc

• YTEOL:

  8.2

• Actuator Length:

  0.445 inch

• Actuator Material:

  POLYOXYMETHYLENE

• Actuator Travel:

  2.9972 mm

• Actuator Type:

  PUSHBUTTON

• Body Breadth:

  9.0932 mm

• Body Height:

  28.9052 mm

• Body Length or Diameter:

  8.3058 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  SILVER

• Contact Current(DC)-Max:

  0.1 A

• Contact (DC) Max Rating R Load:

  0.1A@30VDC

• Contact Resistance:

  0.1 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  250VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  SILVER

• Housing Material:

  POLYBUTYLENE TEREPHTHALATE

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  POLYAMIDE

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

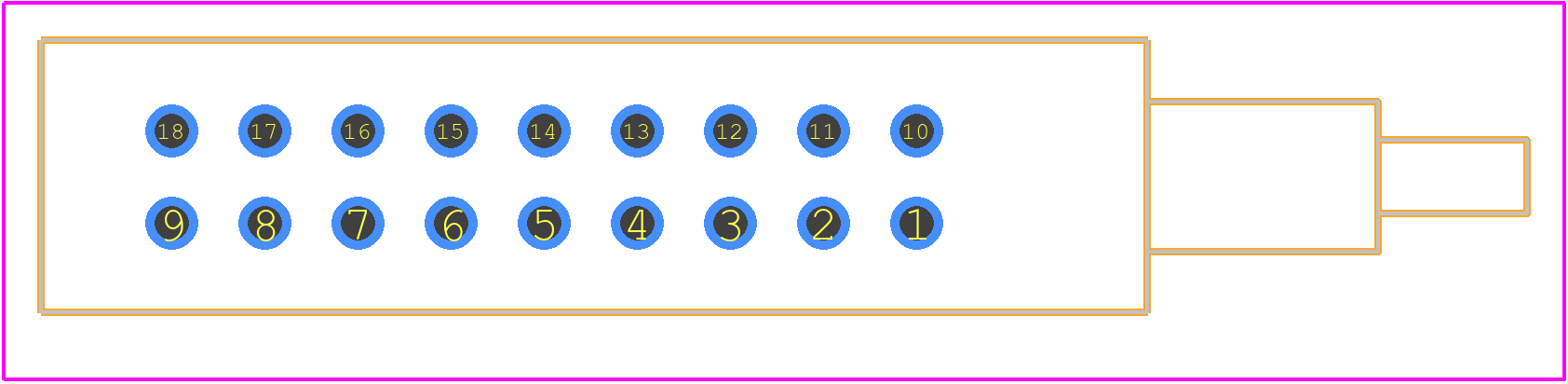

• PCB Hole Count:

  18

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  6PDT

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Length:

  0.157 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
