PBH6UEENAGVX footprint, schematic symbol and 3D model by E-Switch

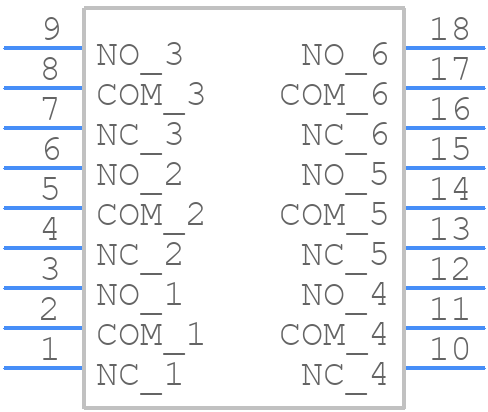

Symbol

click to zoom

PCB Footprints

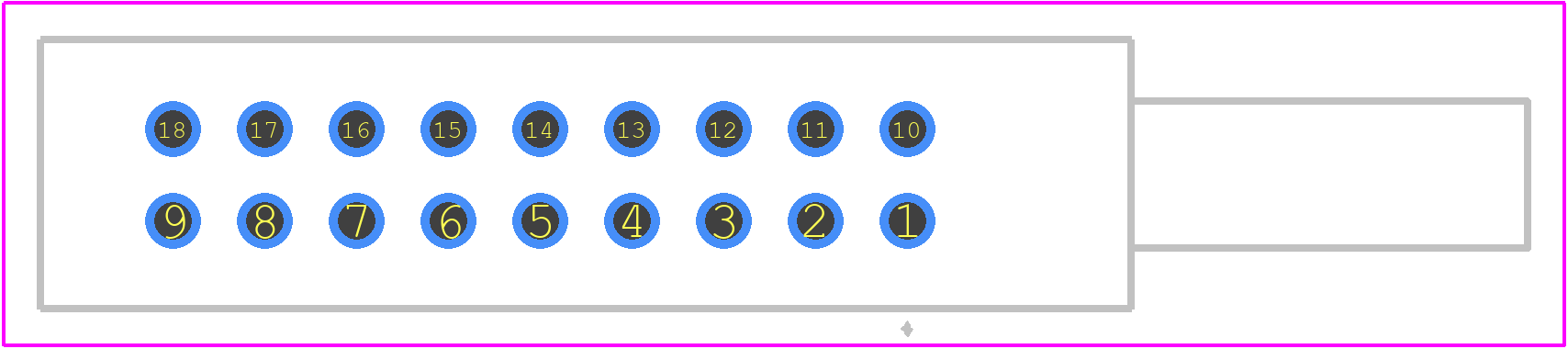

PBH6UEENAGVX - E-Switch PCB footprint - Other - Other - PBH6UEENAGVX-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PBH6UEENAGVX
Part Number PBH6UEENAGVX
Manufacturer E-Switch
Pin Count 18
Part Category Switch
Package Category Other
Footprint Name Other - PBH6UEENAGVX-3
Released Date Aug 17, 2021
Last Modified Date Dec 31, 2024 12:37 PM UTC
Pinout / Pin List Click Here (Member Only)

PBH6UEENAGVX Details

Manufacturer Part Number:
PBH6UEENAGVX
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
E-Switch Inc
Switch Type:
PUSHBUTTON SWITCH

PBH6UEENAGVX Frequently Asked Questions (FAQs)

The recommended operating temperature range for the PBH6UEENAGVX is -20°C to 70°C.
Yes, the PBH6UEENAGVX is designed for high-reliability applications, with a lifespan of up to 1 million cycles and a low bounce time of 1 ms.
The maximum voltage rating for the PBH6UEENAGVX is 12 VDC.
The PBH6UEENAGVX has a IP67 rating, making it suitable for use in harsh environments and allowing it to be washed with water or mild detergents.
The actuation force required for the PBH6UEENAGVX is 2.2 N (± 0.5 N).

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PBH6UEENAGVX Overview

Use the download button to access the PBH6UEENAGVX schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PBH6U, or try a keyword search, such as Pushbutton Switches
